IP65 W80xH40mm Waterproof Profile LED Linear Light
Product Parameters
| Input Voltage | AC100-277V / AC220-240V, 50-60HZ |
| Material | 6063 Aluminium Profile + Opal Diffuser |
| Profile Size | W80*H40mm |
| Length Option | 600mm / 1200mm / 1500mm / 1800mm / 2400mm |
| LED Chip | SMD2835 |
| Driver Brand | AIDIMMING |
| Color Temperature | 3000K / 4000K / 6000K |
| Luminous Flux | 100-110Lm/W |
| CRI | >80Ra |
| PF | >0.90 |
| Flicker Free | Yes |
| Function Option | Non-dimming / 0-10V dimming / Triac dimming / DALI dimming |
| Finish Color | Black / White |
| Installation | Suspended / Surface / Wall Mount |
| IP Grade | IP65 |
| Warranty | 5 Years |
Model Specifications
| Model No. | Watt | Lumens | Size | Input Voltage | CCT |
| EN-X8040FS-20 | 20W | 2000Lm | L600*W80*H40mm | AC100-277V | 3000K/4000K/6000K |
| EN-X8040FS-40 | 40W | 4000Lm | L1200*W80*H40mm | AC100-277V | 3000K/4000K/6000K |
| EN-X8040FS-50 | 50W | 5000Lm | L1500*W80*H40mm | AC100-277V | 3000K/4000K/6000K |
| EN-X8040FS-60 | 60W | 6000Lm | L1800*W80*H40mm | AC100-277V | 3000K/4000K/6000K |
| EN-X8040FS-80 | 80W | 8000Lm | L2400*W80*H40mm | AC100-277V | 3000K/4000K/6000K |

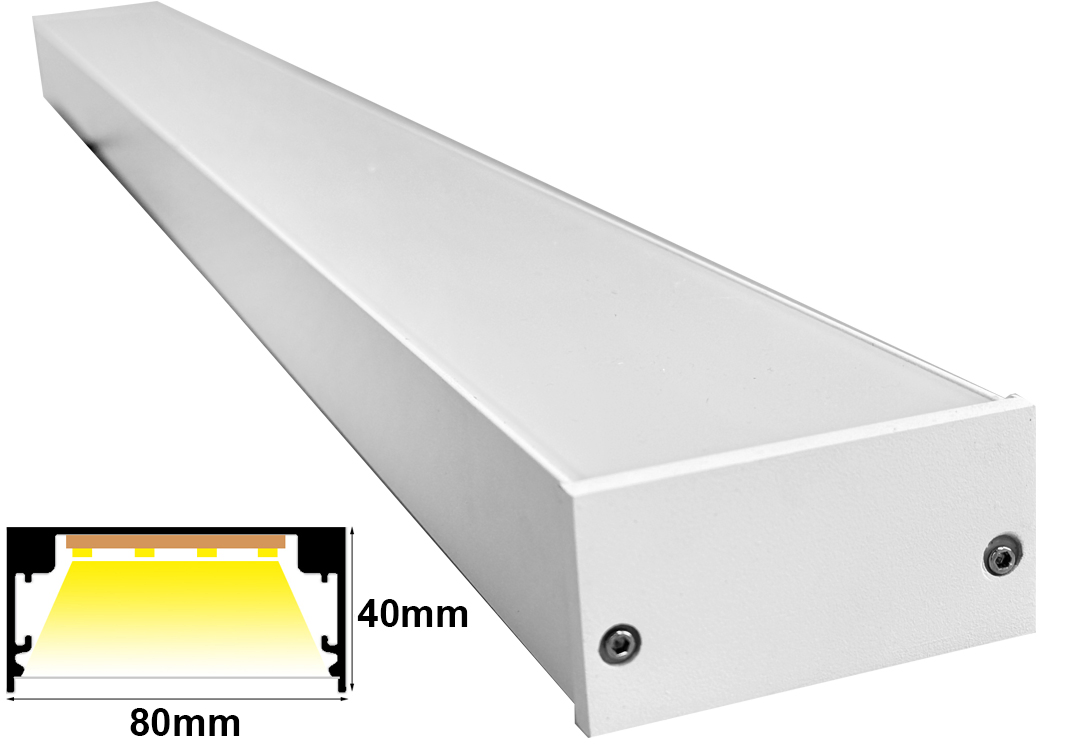

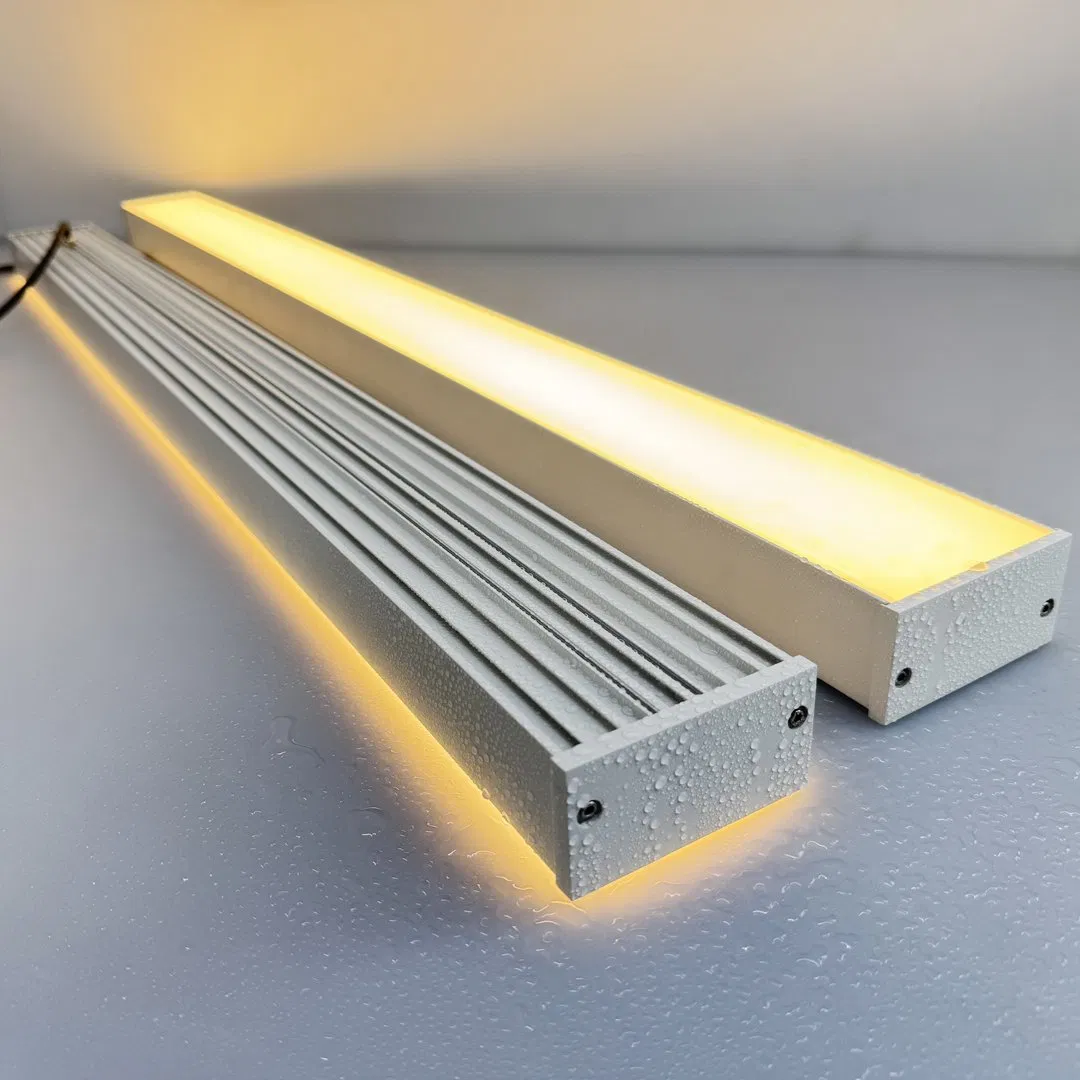

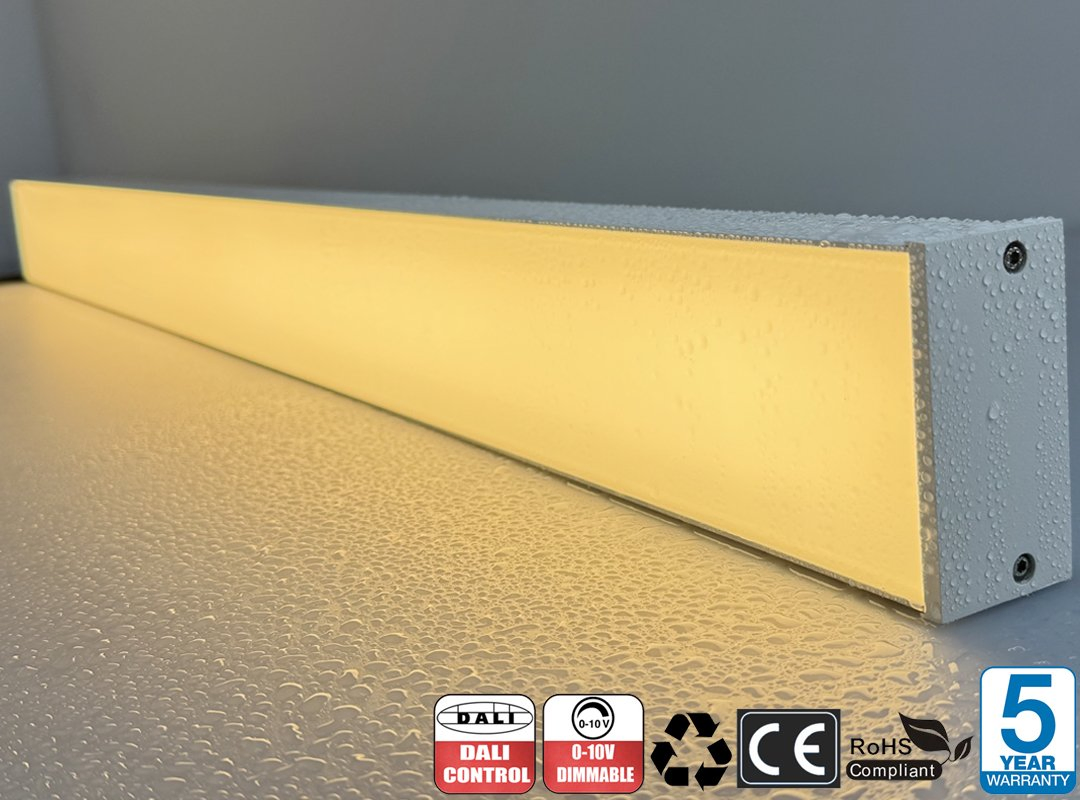

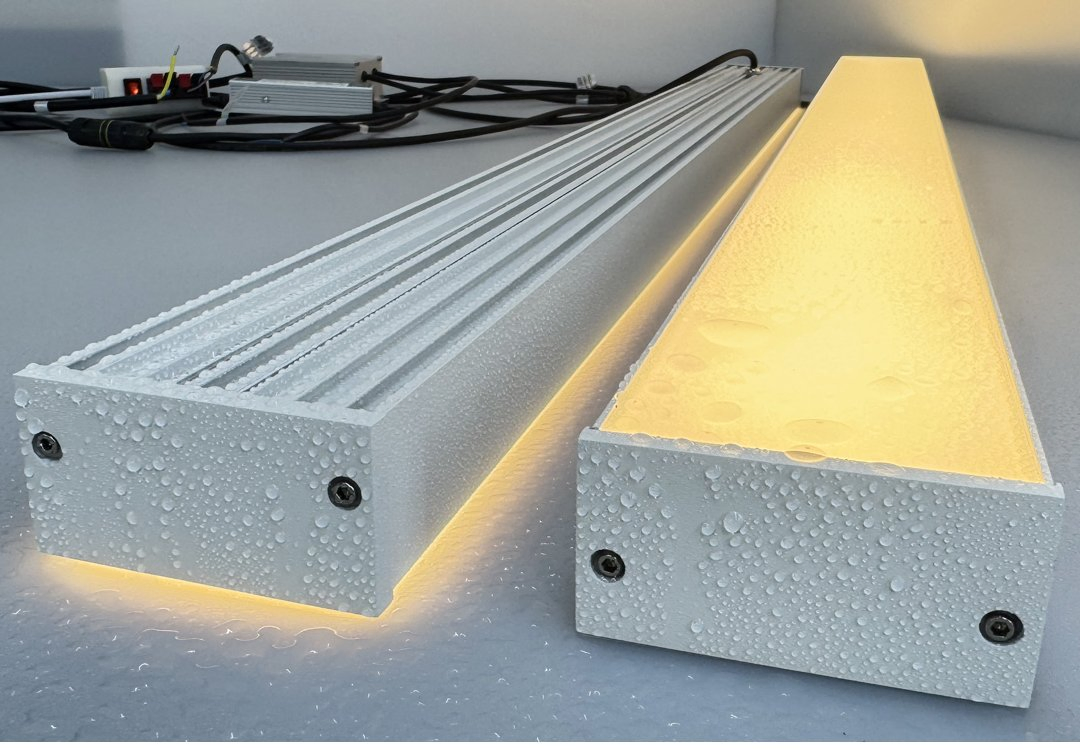

Product Size & Display

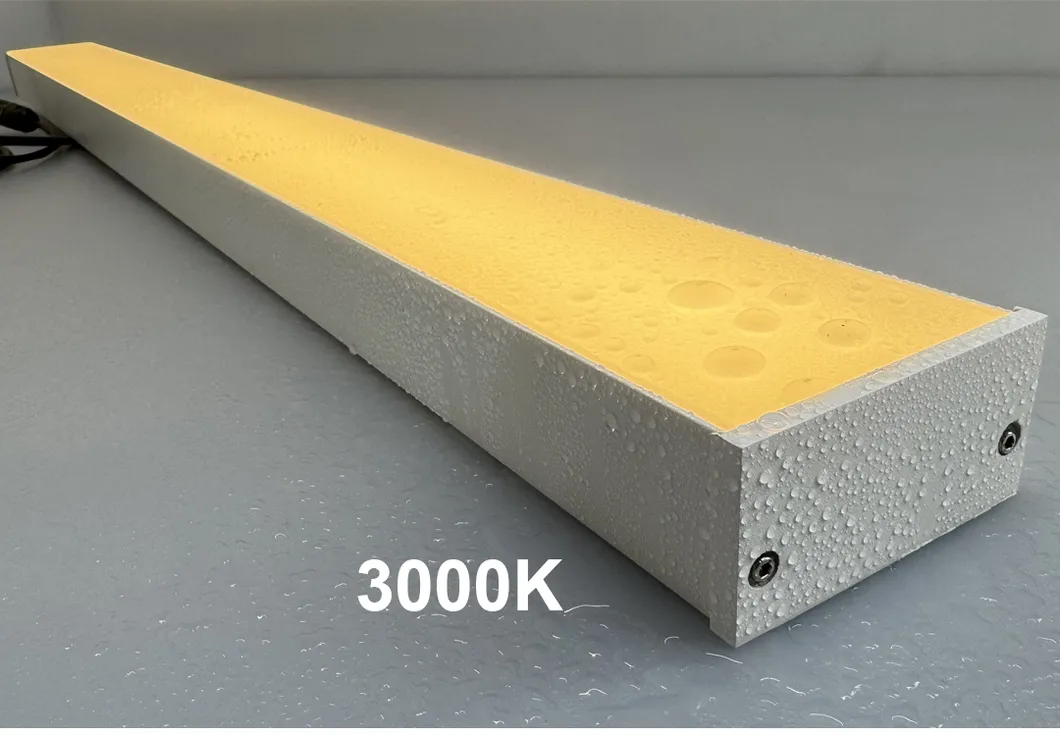

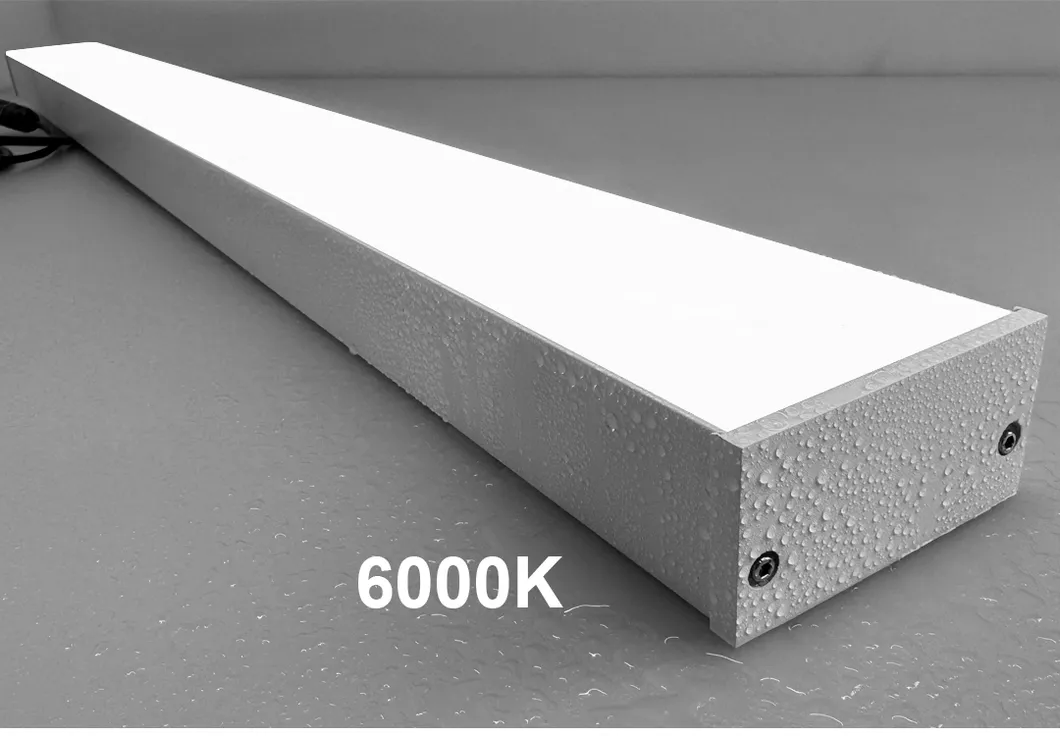

Emitting Color Options

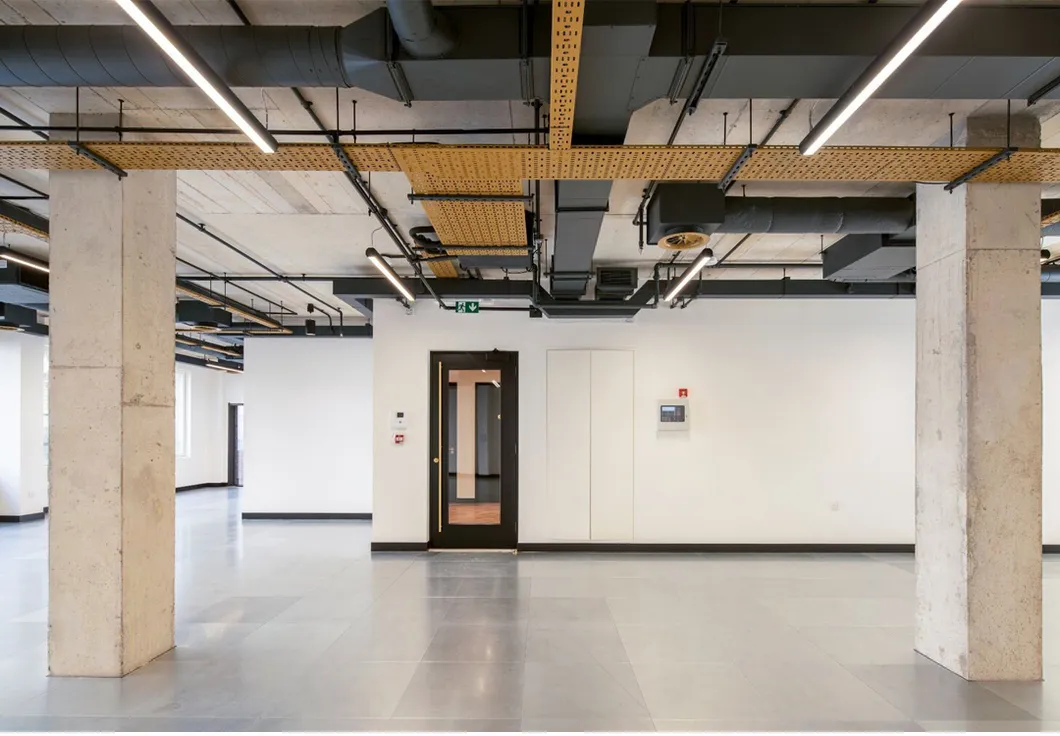

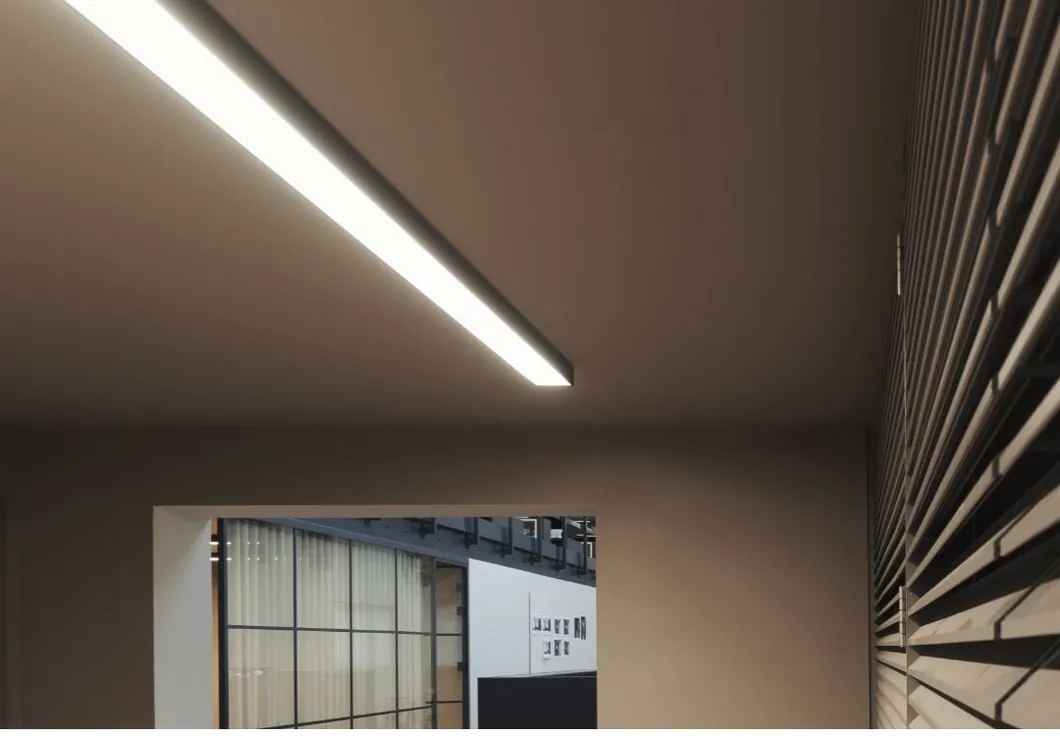

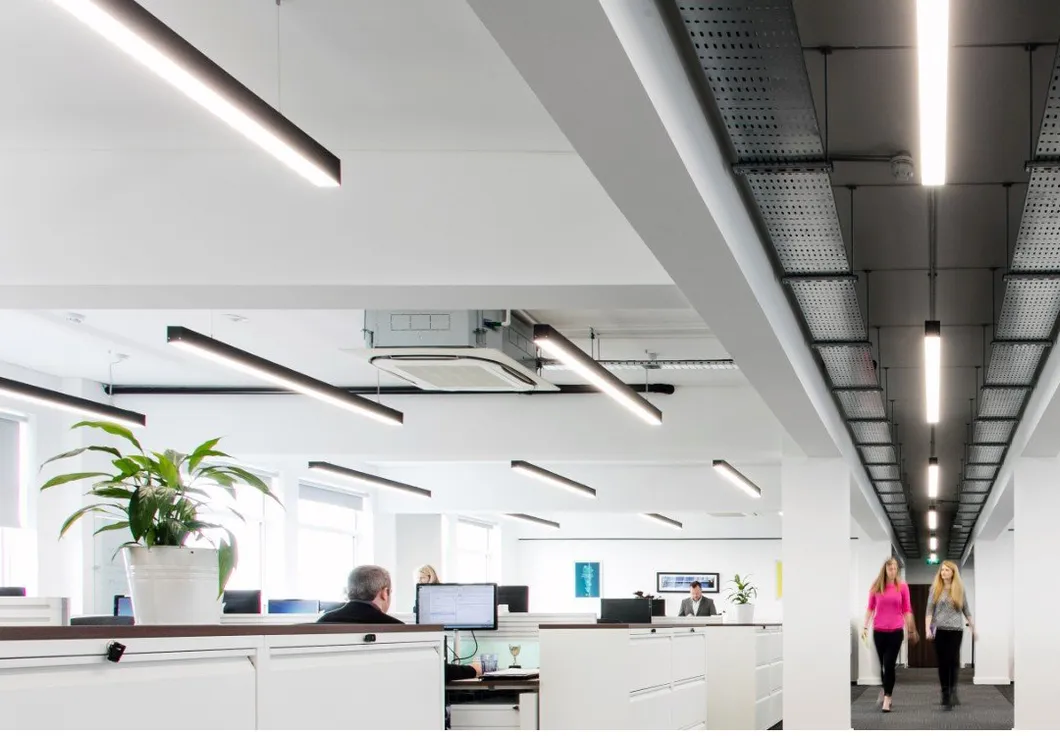

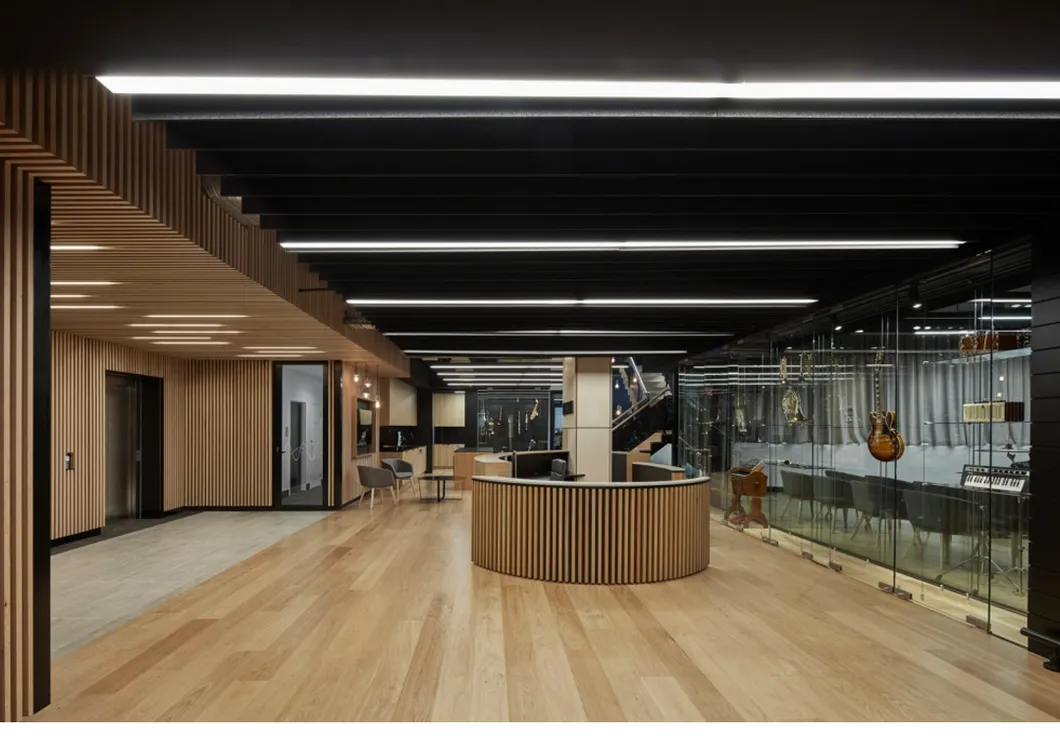

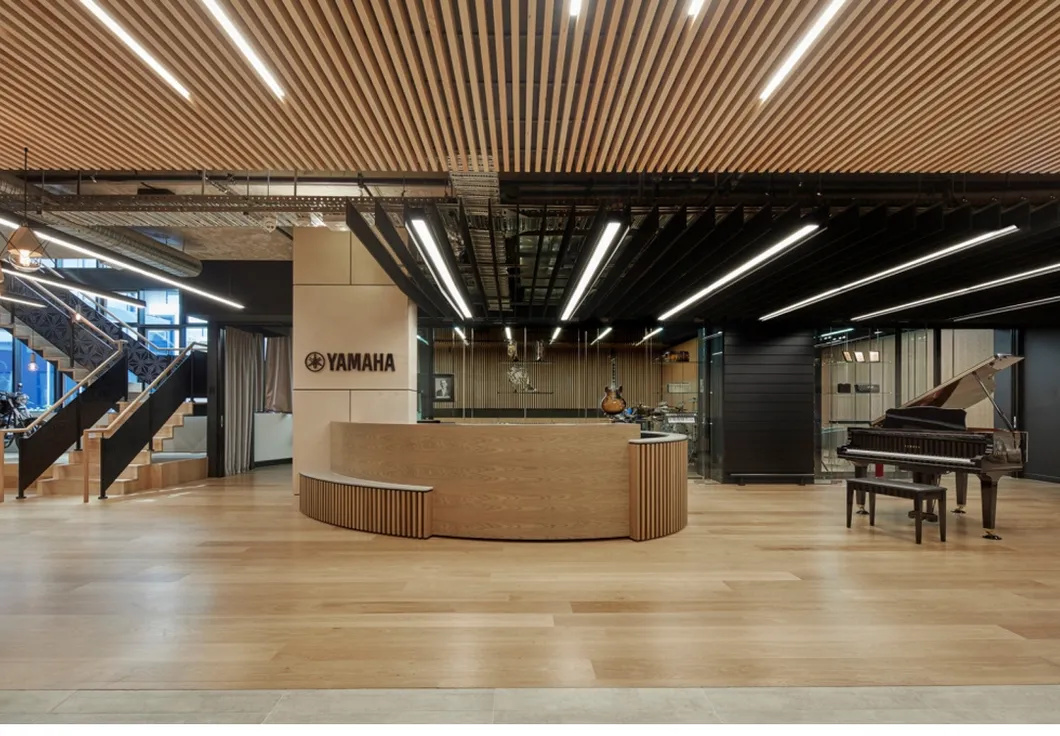

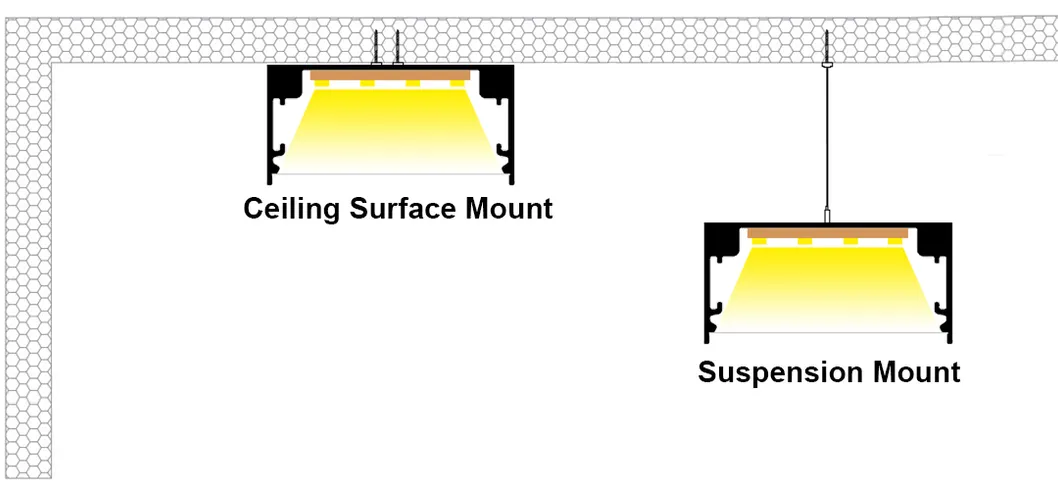

Installation & Application
Product Features
- Extruded aluminium profile.
- Die-cast aluminium end cap.
- Clip-in PMMA diffuser.
- High lumens LED board.
- Built-in driver.
- Wide-beam light distribution.
- Range of length options, OEM available.
Control Types
- ON/OFF
- 0-10V dimming
- Triac dimming
- DALI dimming
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples need 3-5 days, mass production time needs 1-2 weeks for standard orders.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping are also optional.
Q5. Do you offer a guarantee for the products?
A: Yes, we offer 2-5 years warranty on our products.
Q6. How to deal with faulty products?
A: Our defective rate is less than 0.2%. During the warranty period, we will send new replacements for small quantities or discuss repairs for larger batches.
