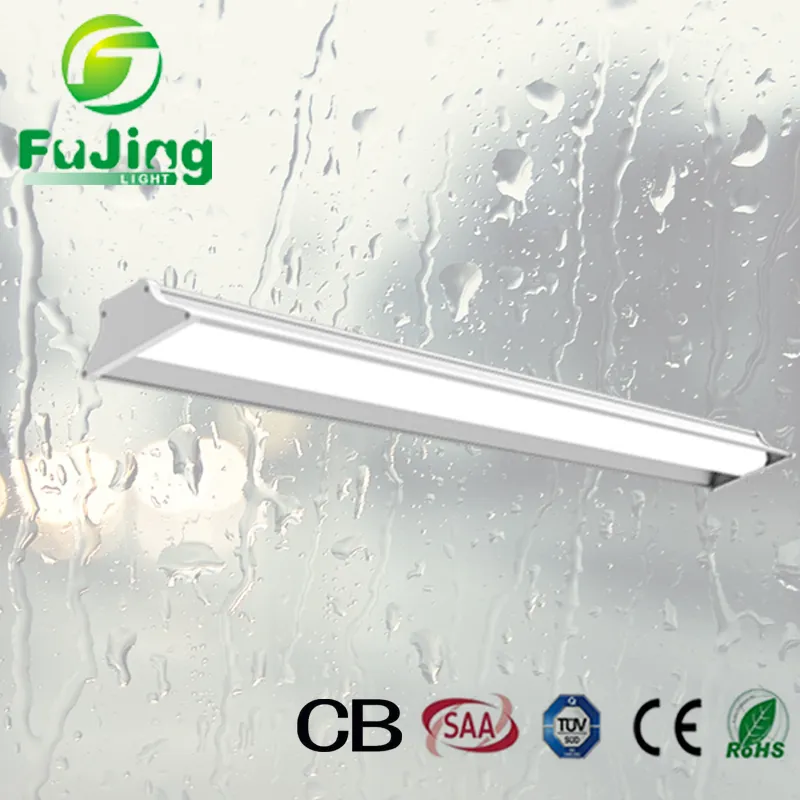

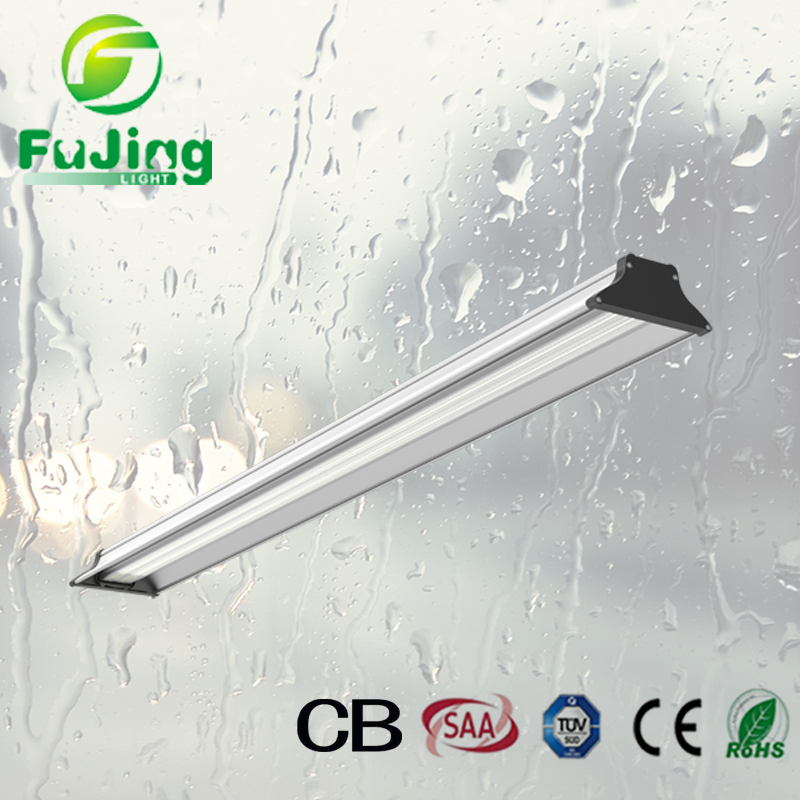

Vactrim Light
Vactrim Light
Housing is a big heat sink, simple but elegant; Thickness aluminum heat sink, excellent heat dissipation, resistant to rust
Unique arc surface design, Modern three-dimensional design is more beautiful and generous
60/90/120degree can optional, Milk white PC diffuser, good light transmission, non-discoloring.
Adopt superior imported chips, high luminous efficiency.
Wide voltage and constant current driving, good reliability.

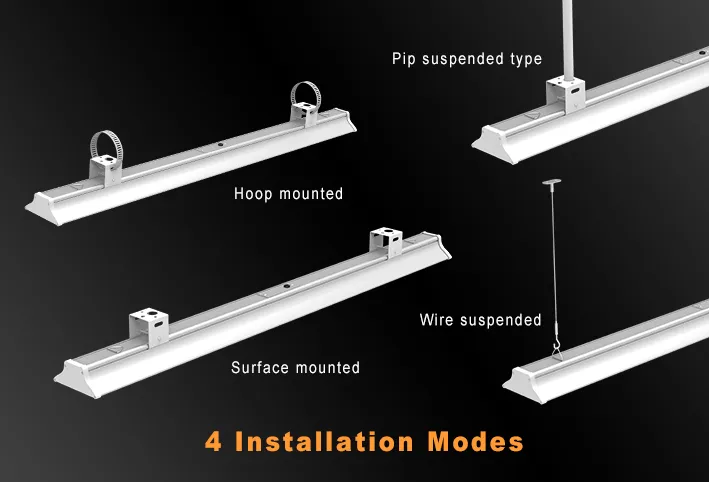

Easy-install aluminum plate, convenient to maintain.
Length options: 60/90/120/150cm

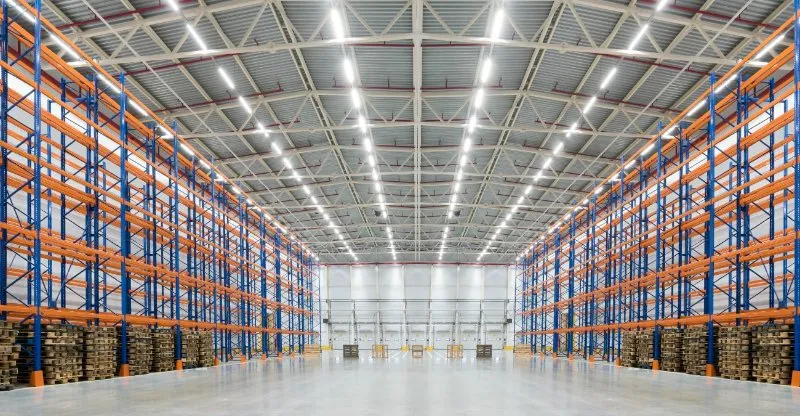

Application: warehouse, workshop, library, indoor parking lot and so on.

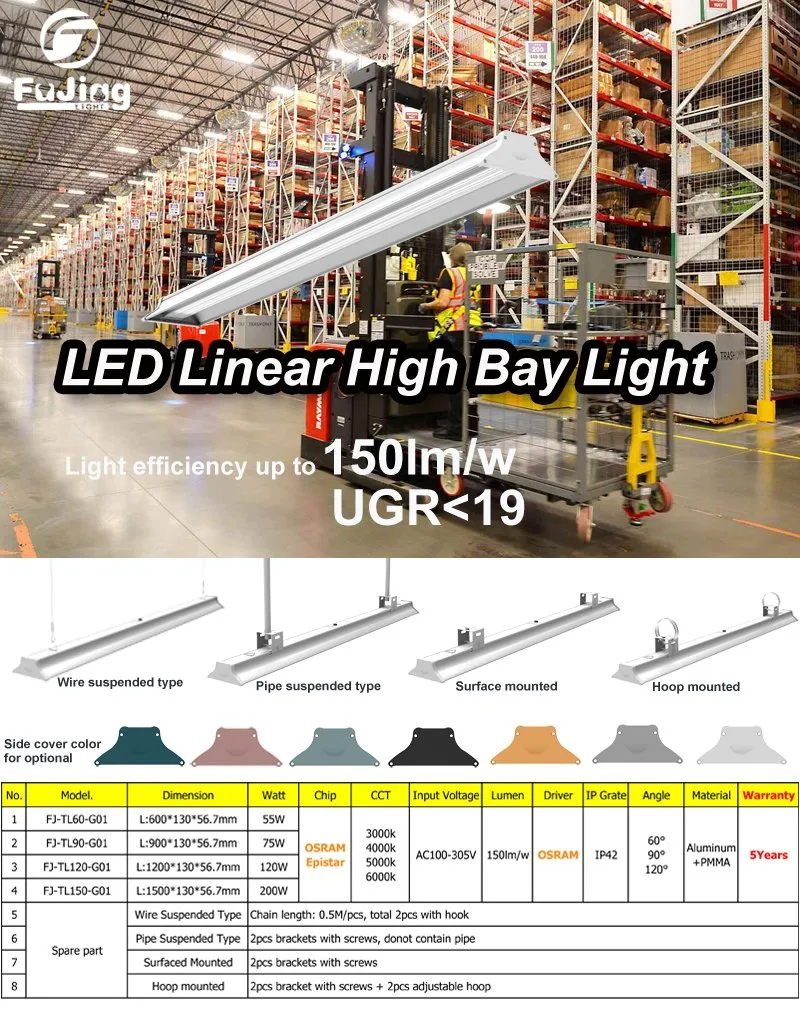

| Part No. | FJ-TL60-G01 | FJ-TL90-G01 | FJ-TL120-G01 | FJ-TL150-G01 |
|---|---|---|---|---|
| Rated Power: | 55W | 75W | 150W | 200W |
| Luminous Flux: | 8250lm | 11250lm | 22500lm | 30000lm |
| Size(mm): | 600*128*61mm | 900*128*61mm | 1200*128*61mm | 1500*128*61mm |
| Input Voltage: | AC85V-277V/AC200-240V, 50-60Hz | |||
| LED Type: | Lumi Leds/Epistar/OS RAM SMD2835 | |||
| Color Temperature: | 2700k-7000K, R, G, B | |||
| Conversion Efficiency: | 92% | |||
| Power Factor: | >0.98 | |||

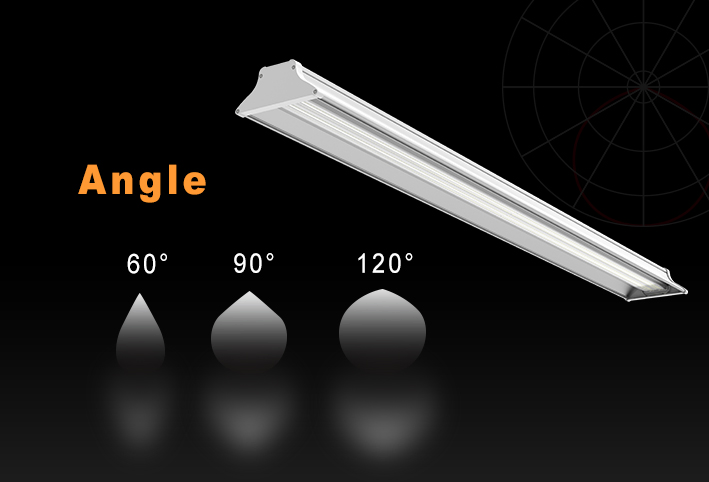

| Beam Angle: | 60/90/120° | |||
| Diffuser: | Clear/Milk | |||
| IP grade: | IP42 | |||
| Operate Temperature: | -25°~+55° | |||
| Storage Temperature: | -25°~+55° | |||
| Color Rendering Index: | >70 | |||
| Life Span: | 50000 hrs | |||
| Housing Color: | Silver | |||
| Luminance decrease: | Keep lighting 1000hours decrease 1% | |||
| Shape: | Rectangle | |||
| Material: | Aluminum + PC | |||
| Application: | Warehouse, workshop, indoor parking lot and so on | |||
Various optic lens models, offering multiple street lighting solutions: 60/90/120degree.
