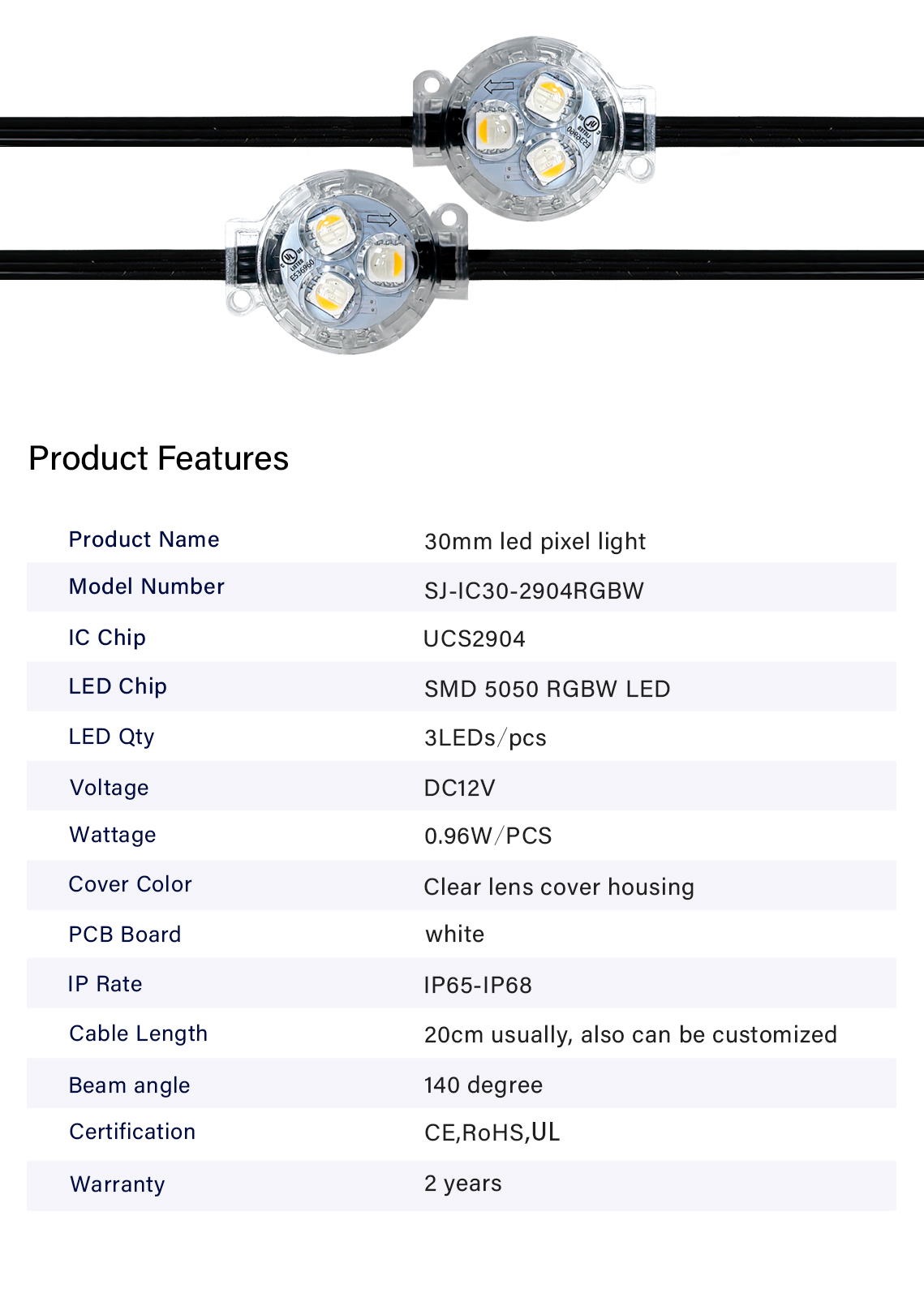

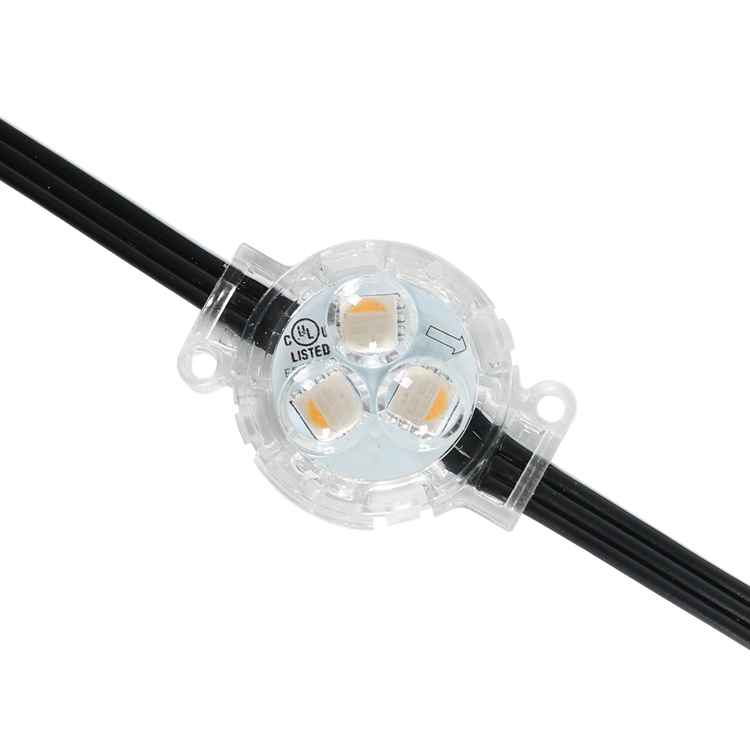

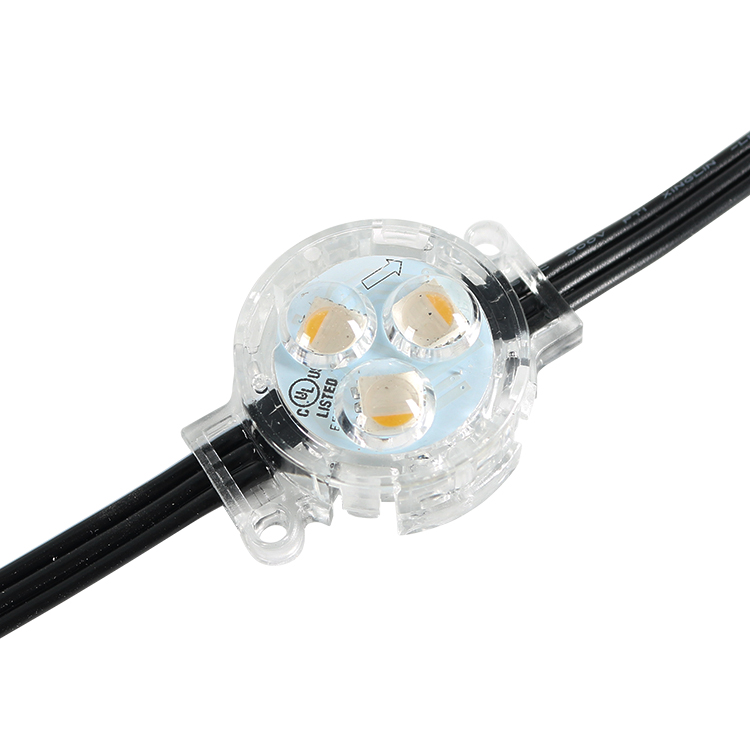

| Product Name |

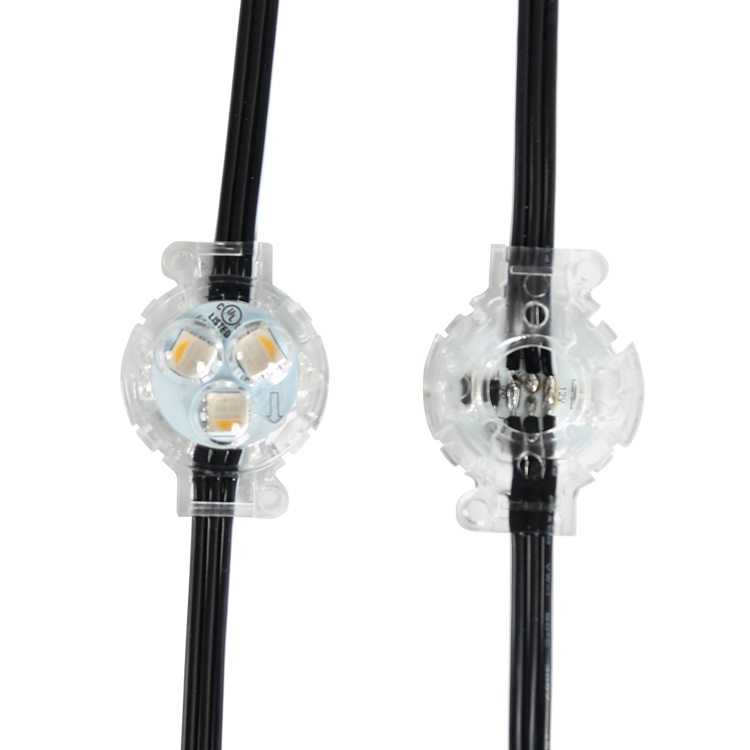

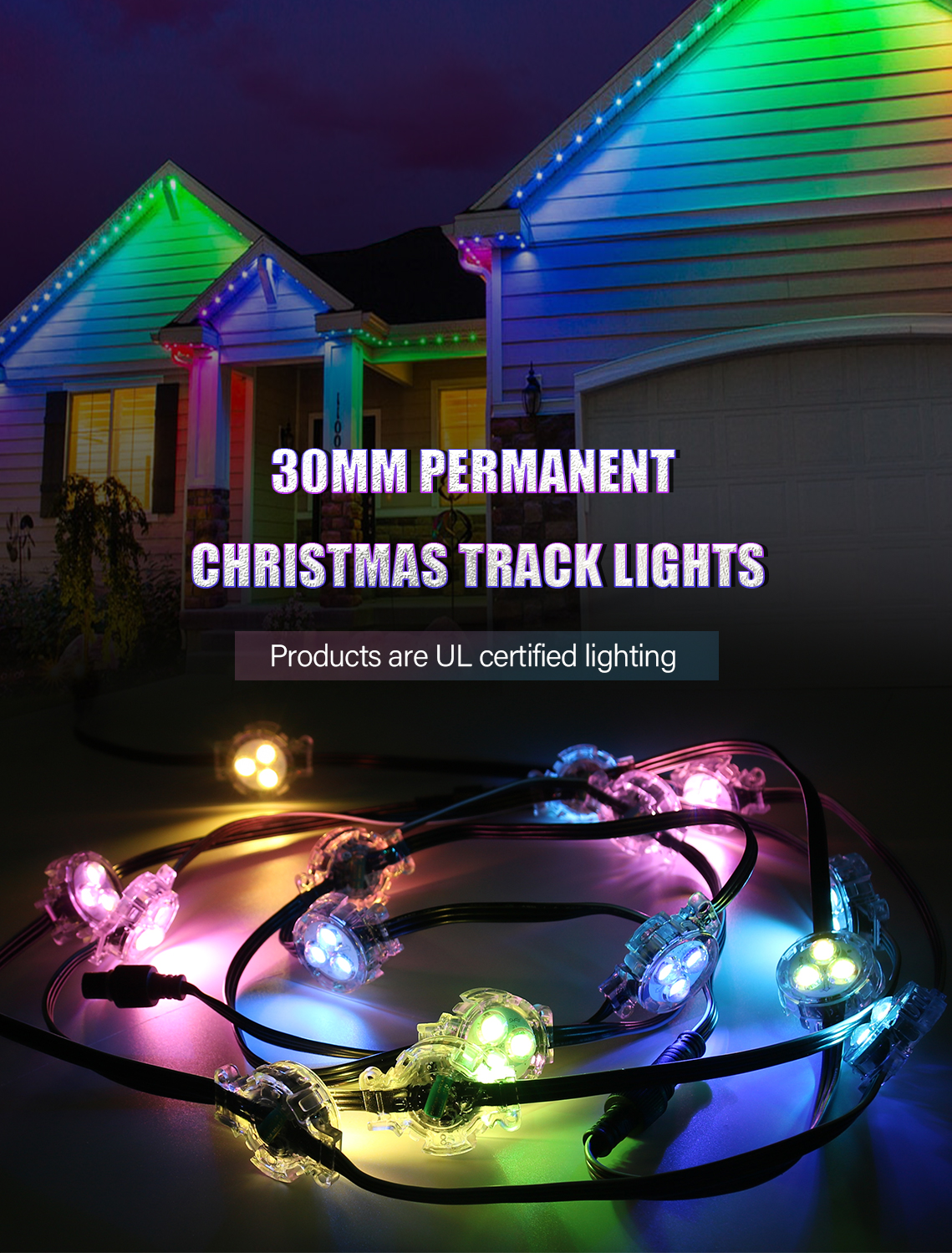

30mm led pixel light |
| Model Number |
SJ-IC30-2904RGBW |
| IC Chip |
UCS2904 |
| LED Chip |
SMD 5050 RGBW LED |
| LED Qty |
3LEDs/pcs |
| Voltage |
DC12V |
| Wattage |
0.96W/PCS |
| Cover Color |
Clear lens cover housing |
| PCB Board |
White |
| Cable Length |
20cm usually, also can be customized |
| Beam angle |
140 degree |
| Certification |

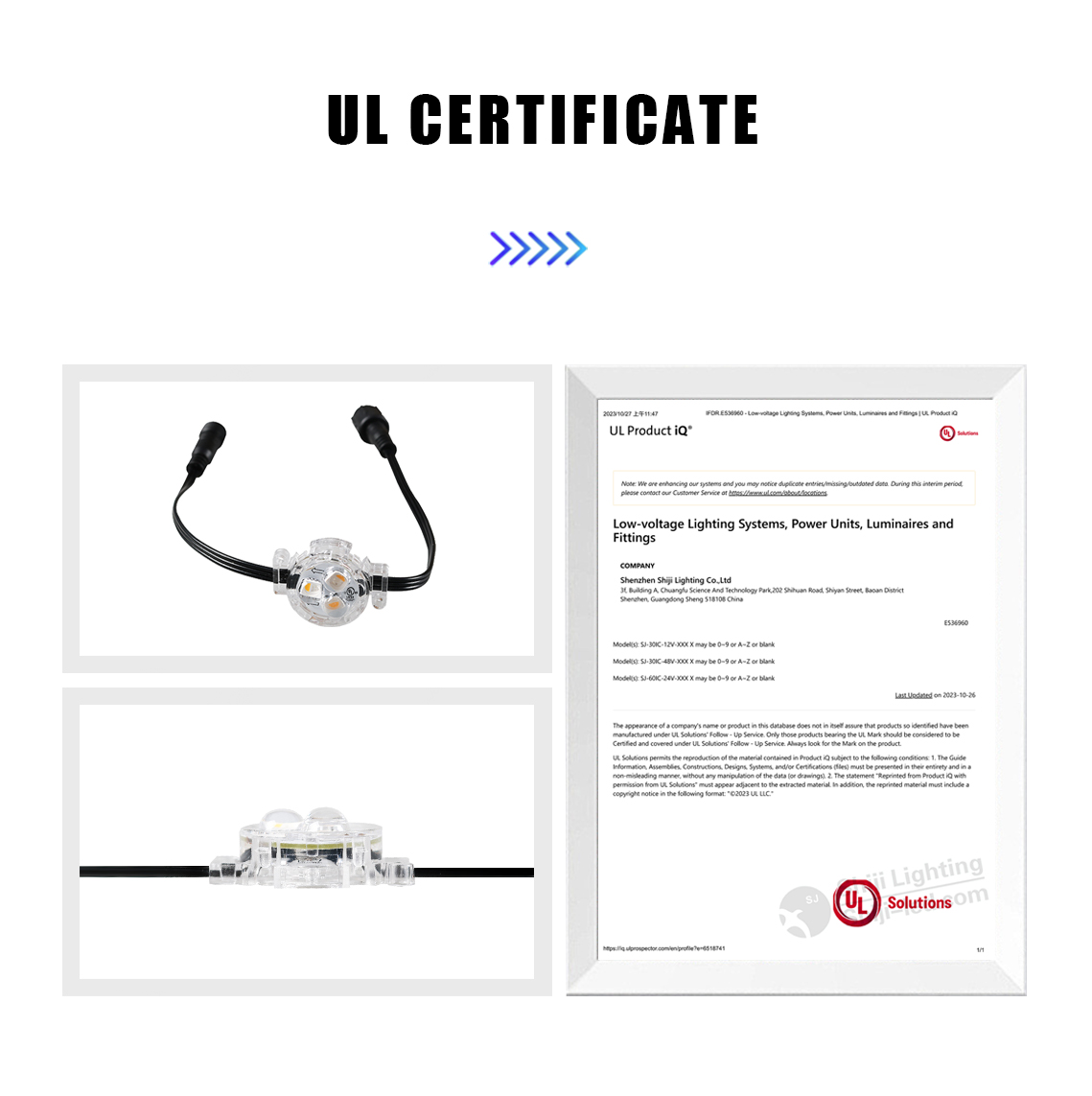

CE, RoHS, UL |
| Warranty |
2 years |
| IP Rate |
IP65-IP68 |
Product Details
Products Description
1
Separate control: 1PCS LED pixel light and 1IC (UCS2904)
2

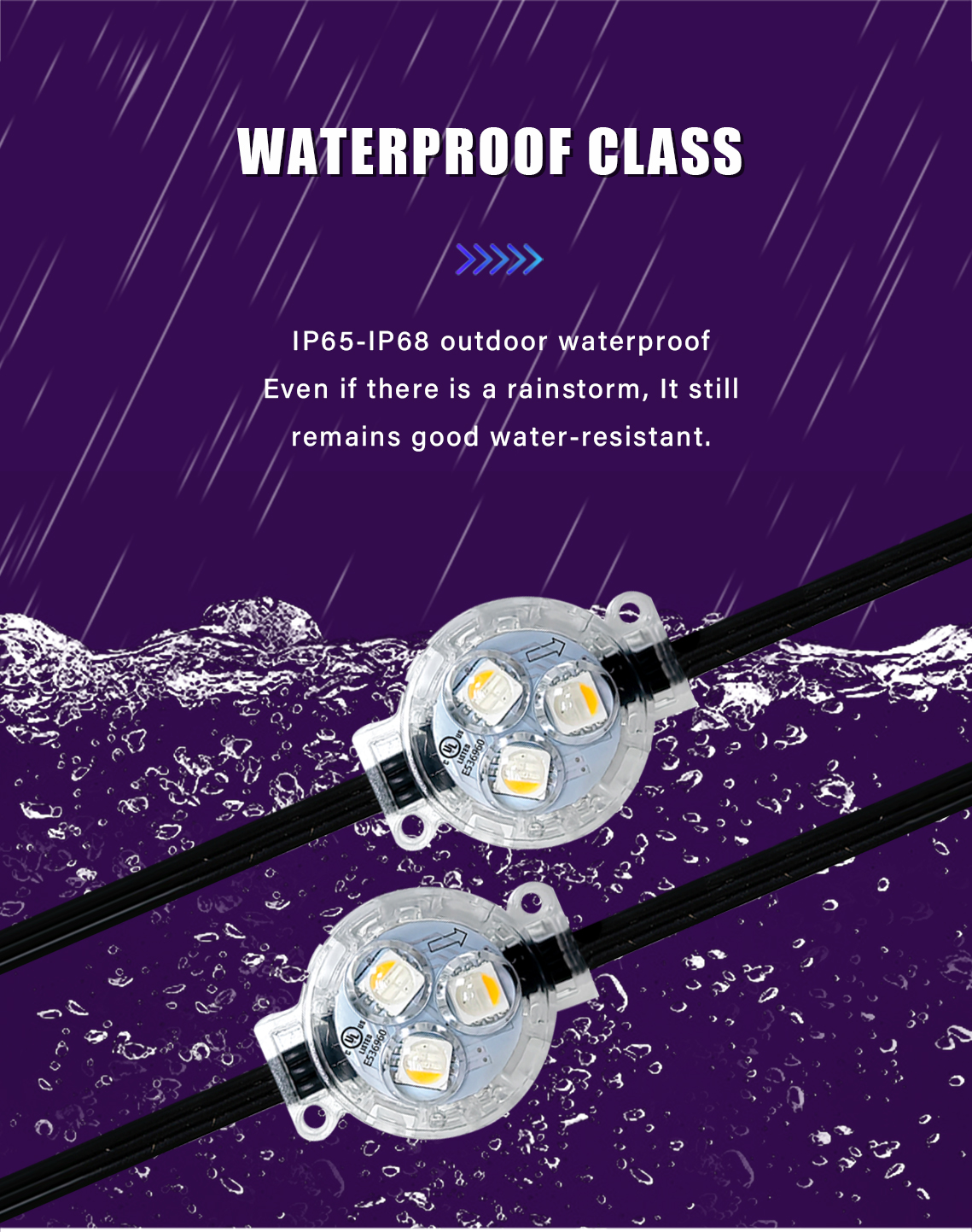

Waterproof: IP68, with silicone waterproof protection.
3

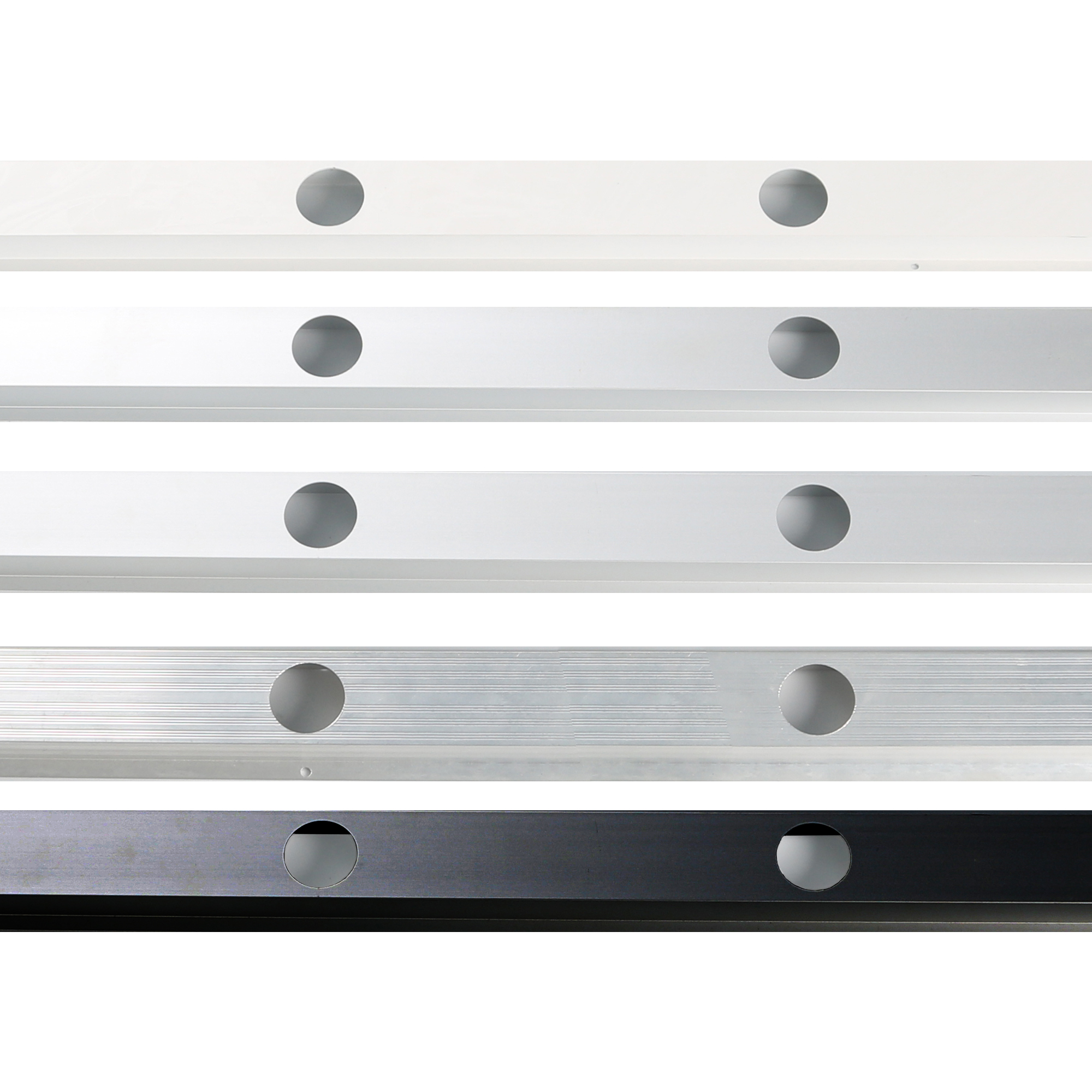

Installation: Easy to install, the best drill holes about 30-31mm.
4
Power supply: 12V DC power must be used to power the pixel. Do not use a power supply higher than 12V, otherwise the whole pixel will be damaged.
5
Connectors: 3PIN JST female male connector, also can be waterproof connector, DAT, DC12V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6
It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and rich color.
7
SMD5050 rgb led pixel module can achieve full color water, chasing, scanning and other effects.
8
Different installation methods can constitute different dynamic effects of different color characteristics and designs.

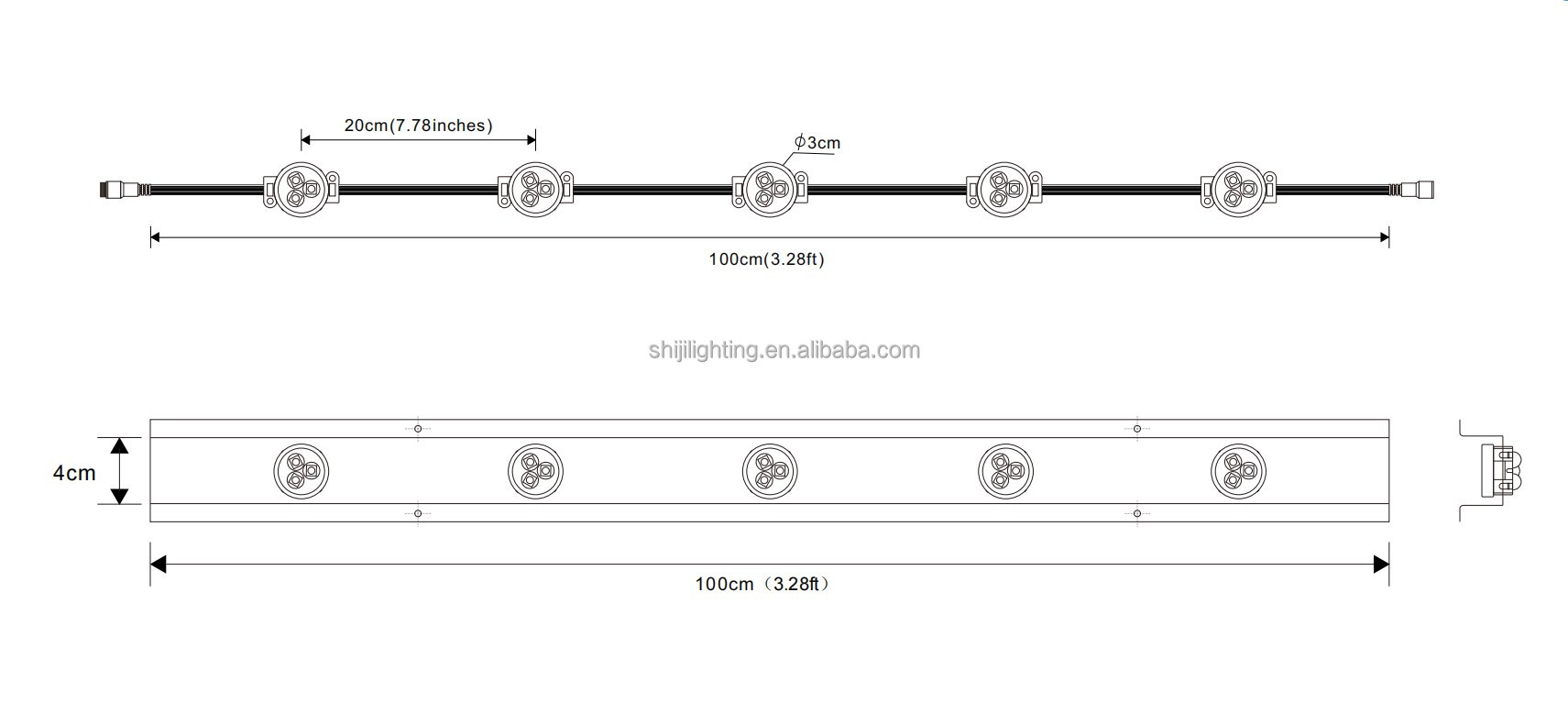

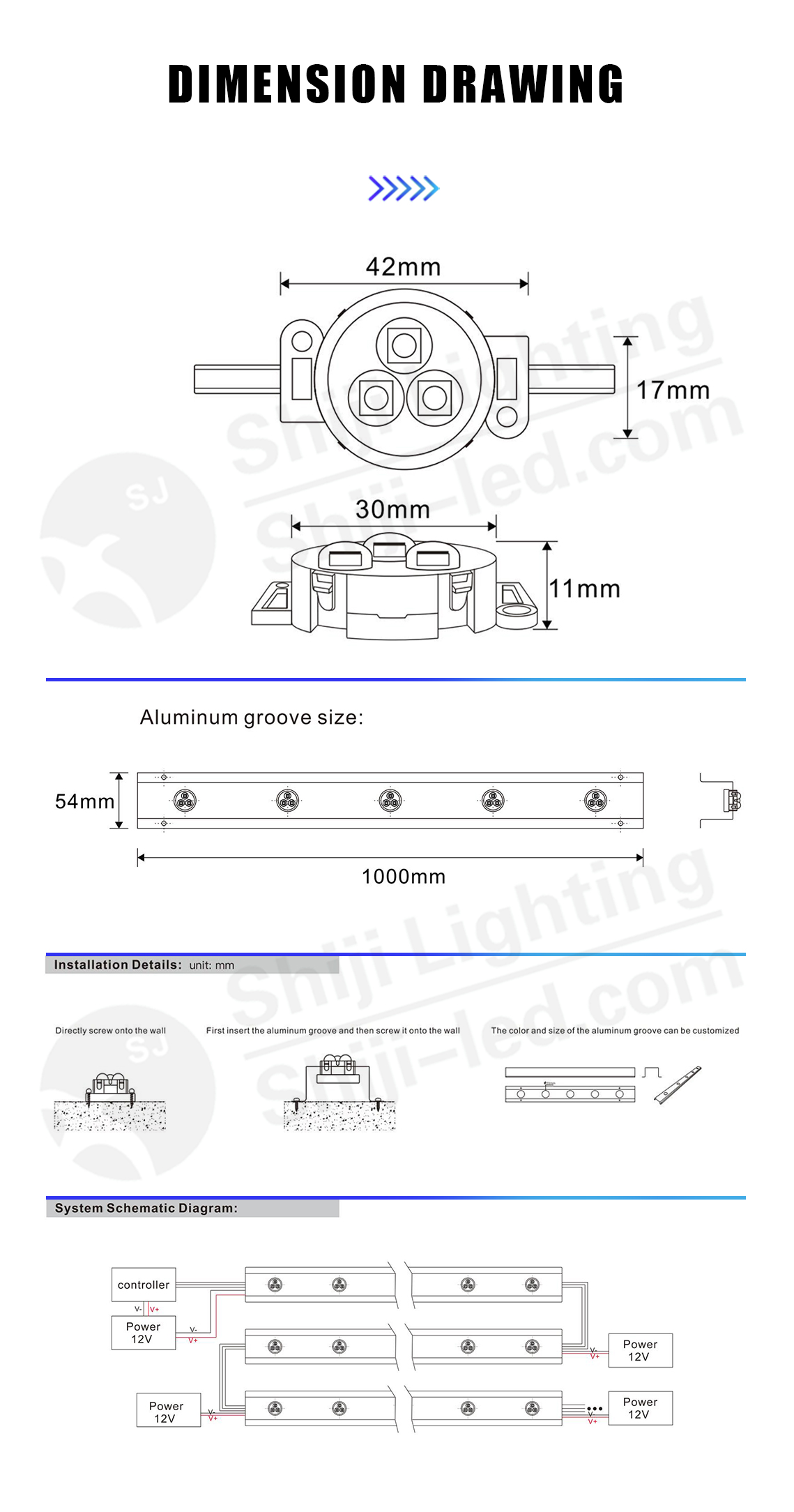

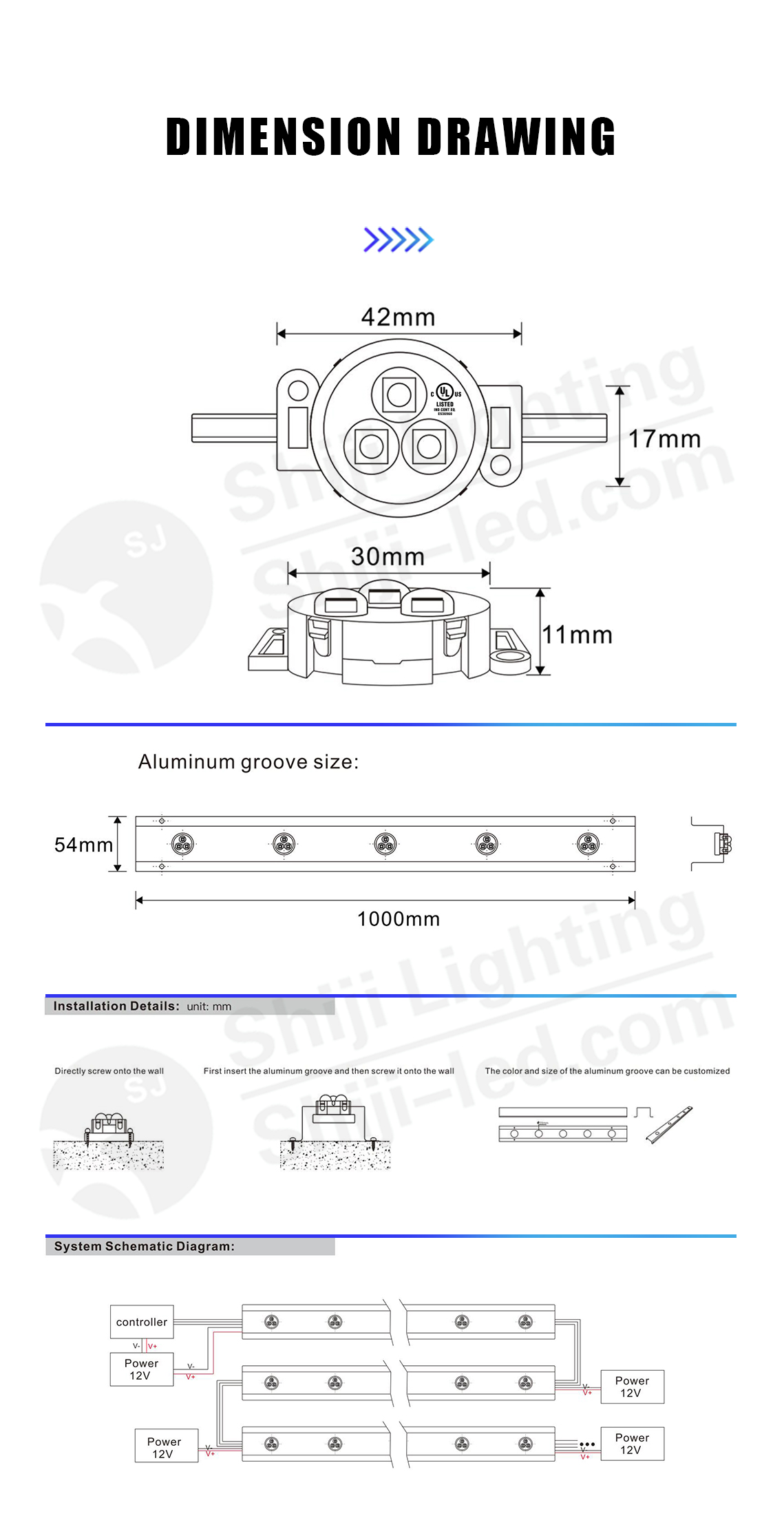

Size

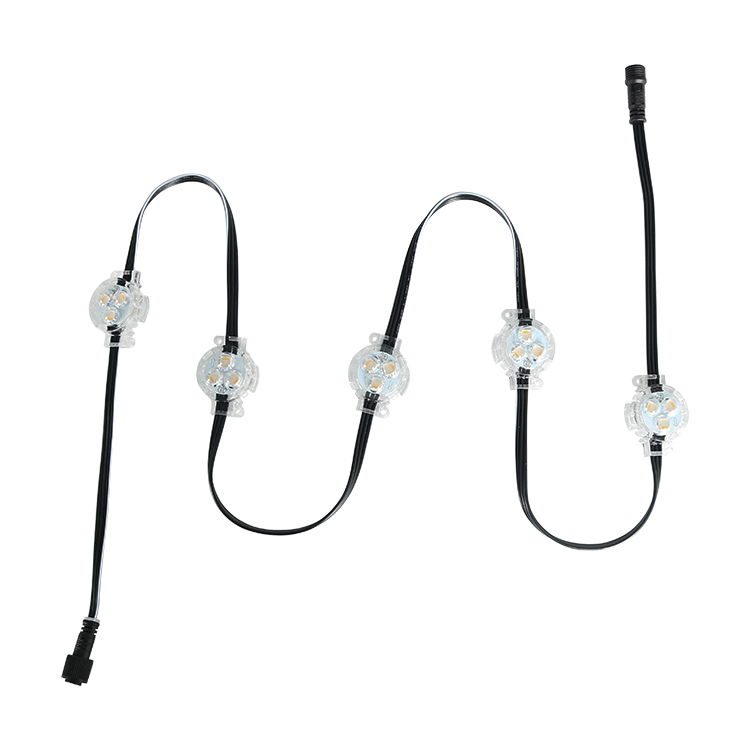

A string is usually 1 meter long, with 5 lights spaced 20cm (7.87inches) apart. The spacing and the number of lights on the string can be customized according to your requirements.

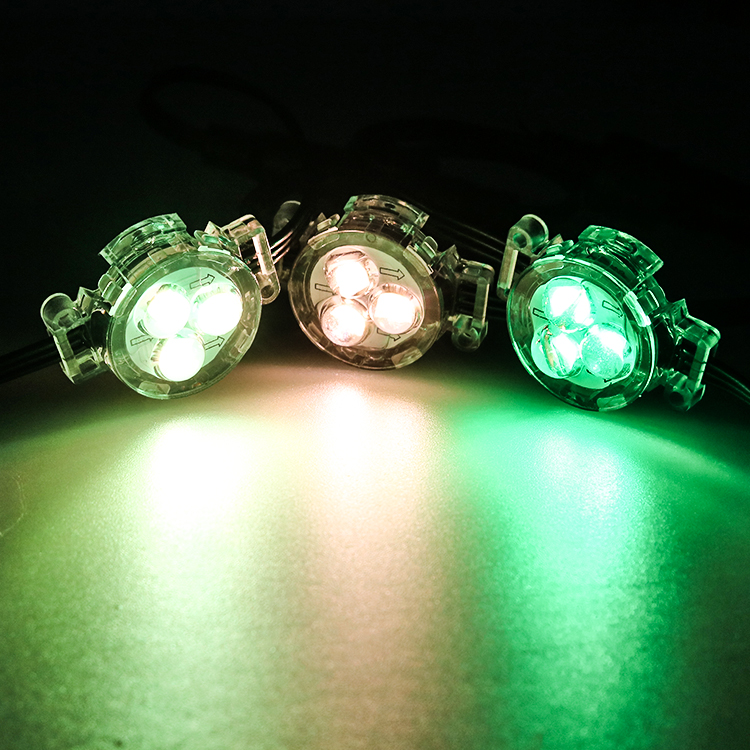

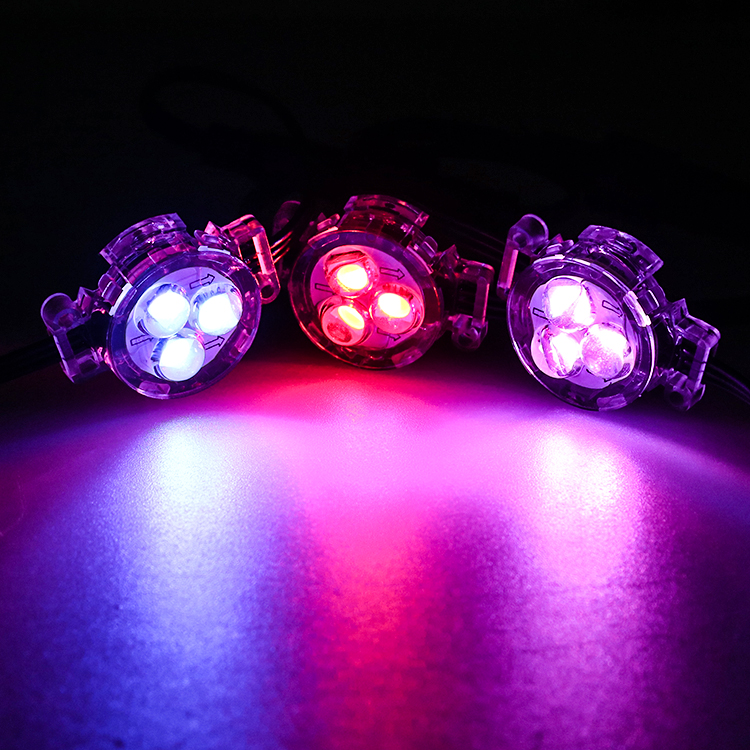

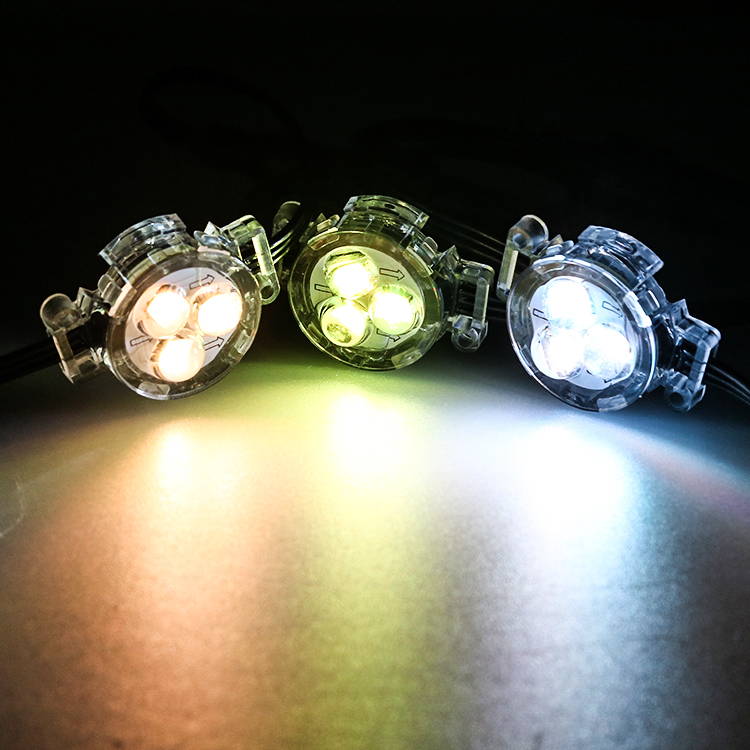

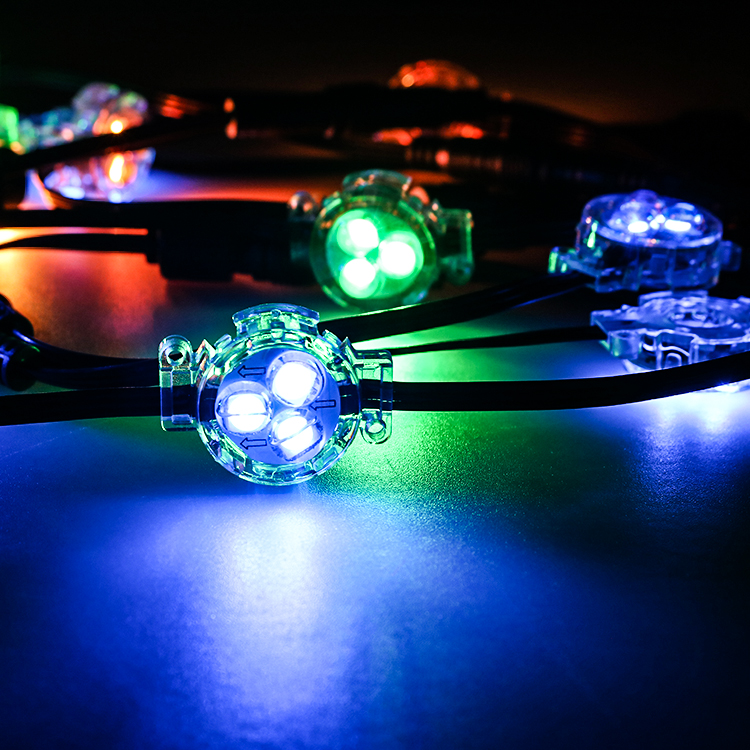

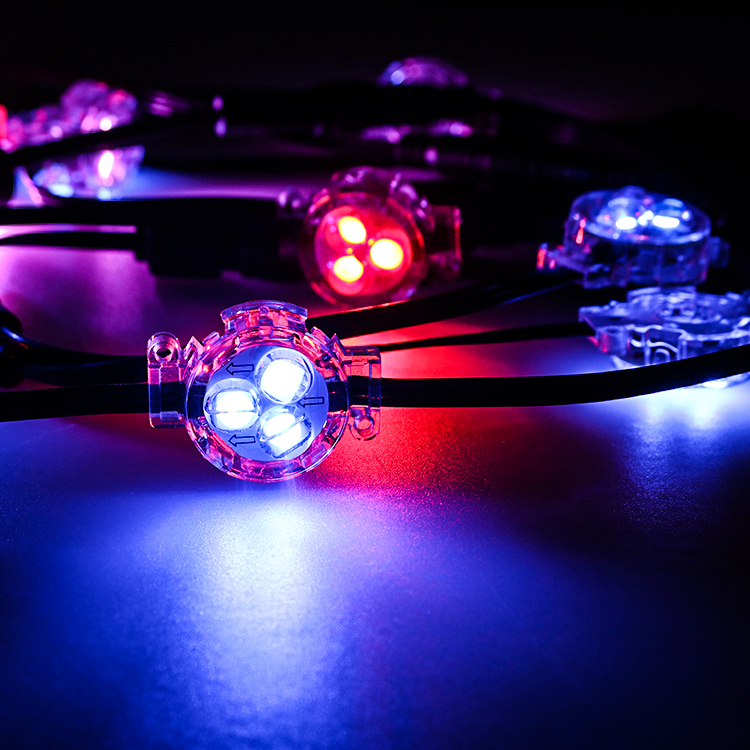

Lighting effect

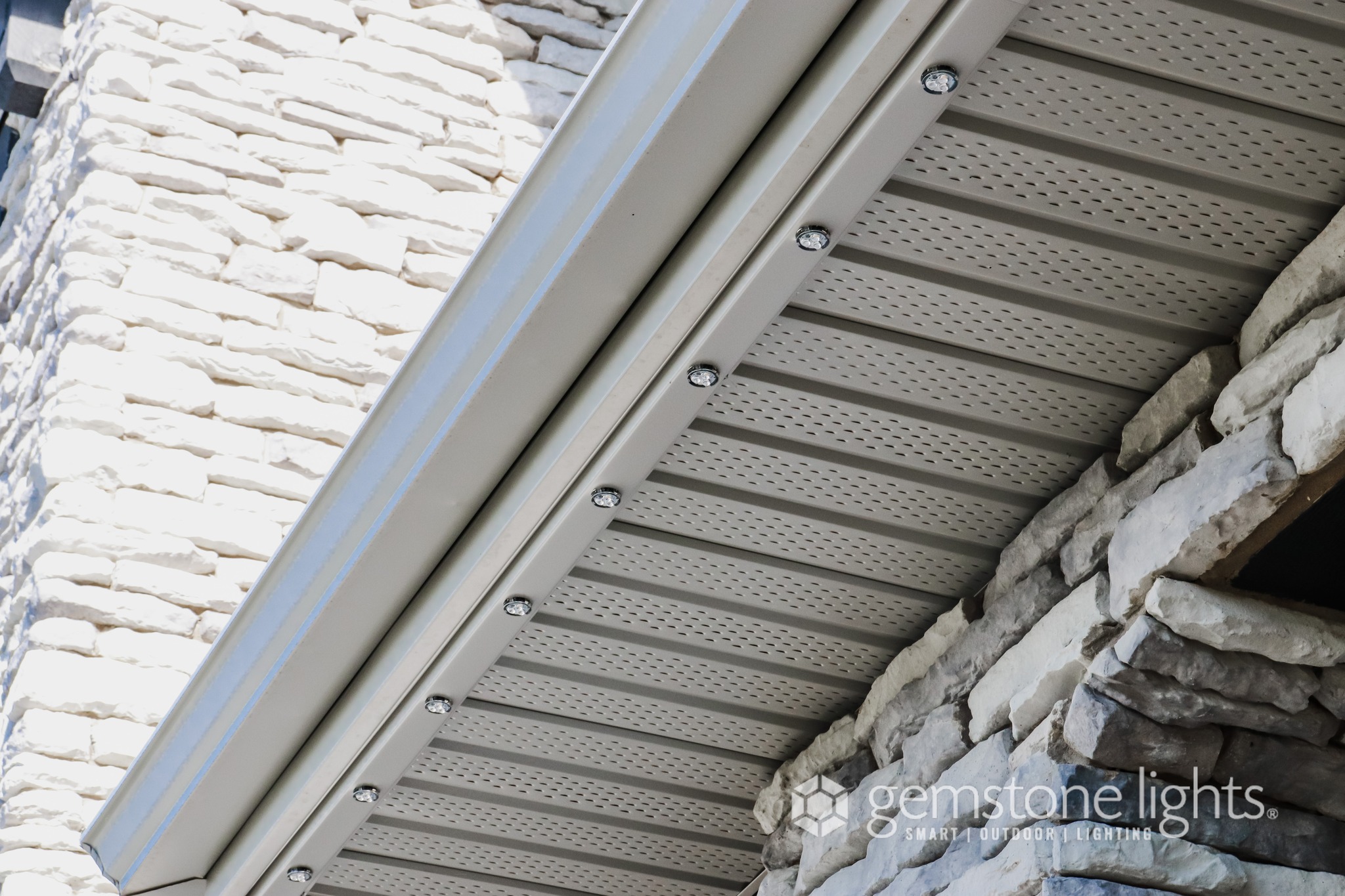

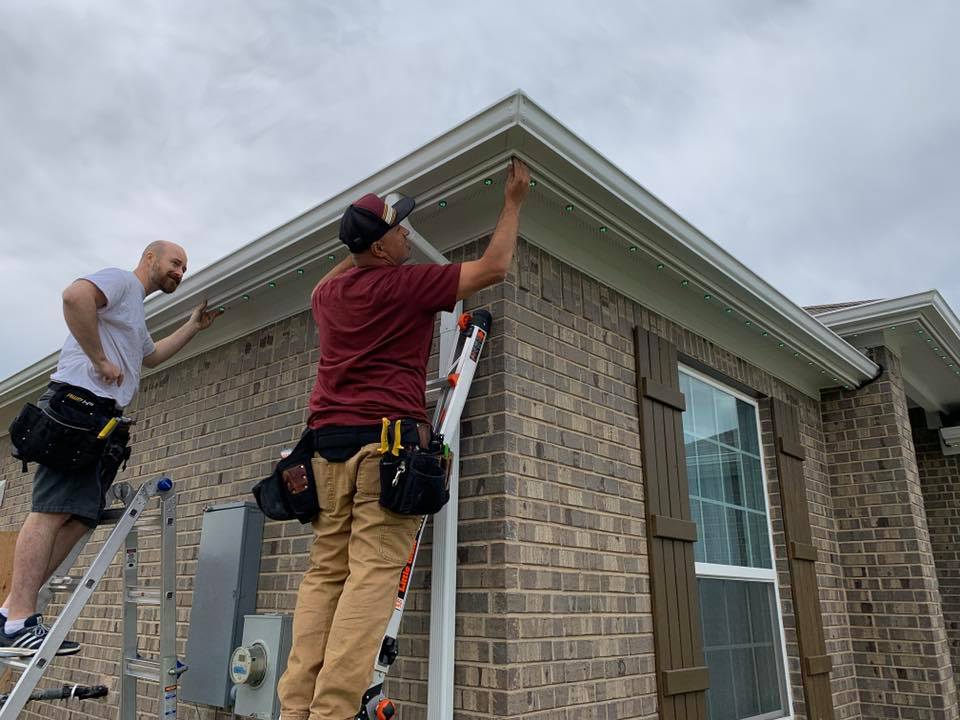

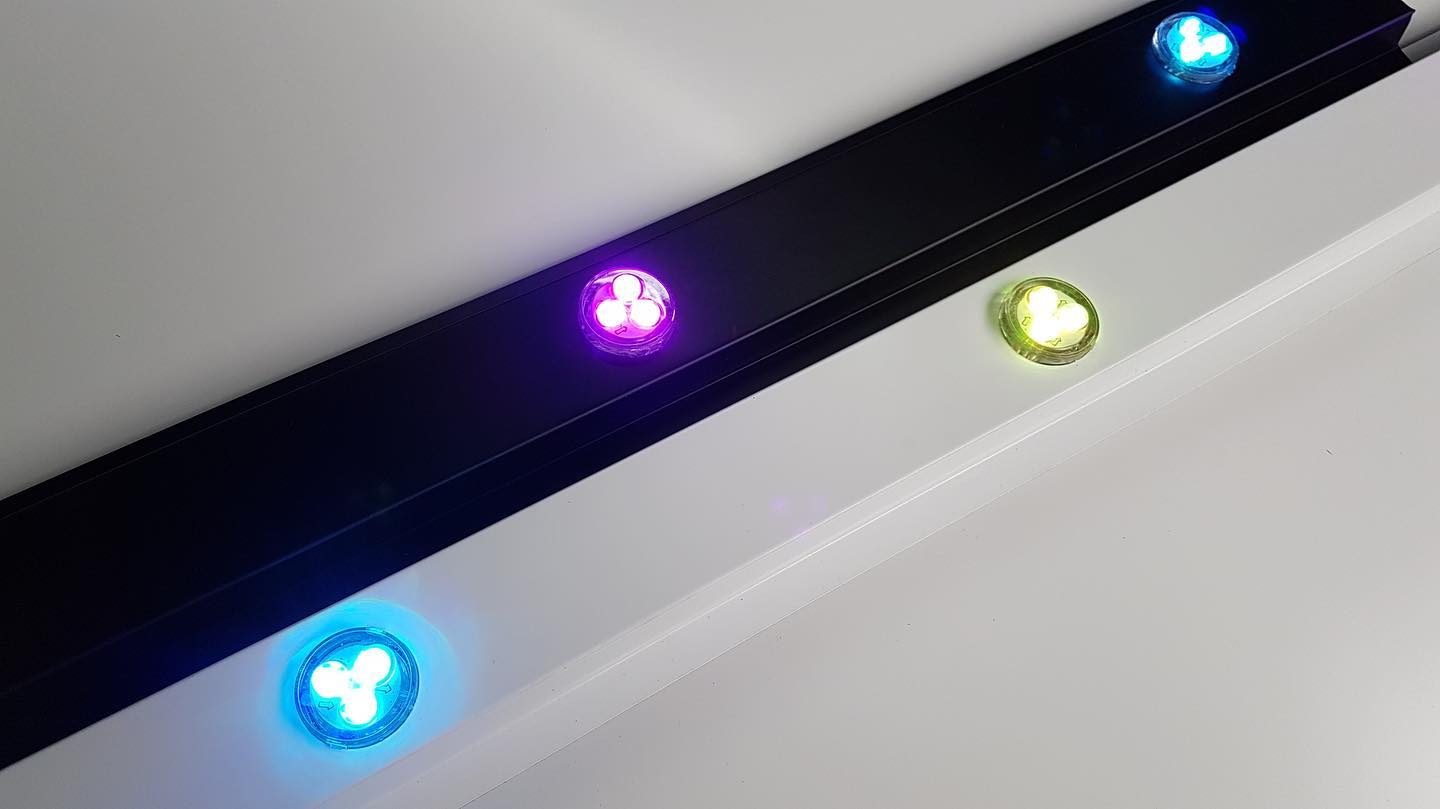

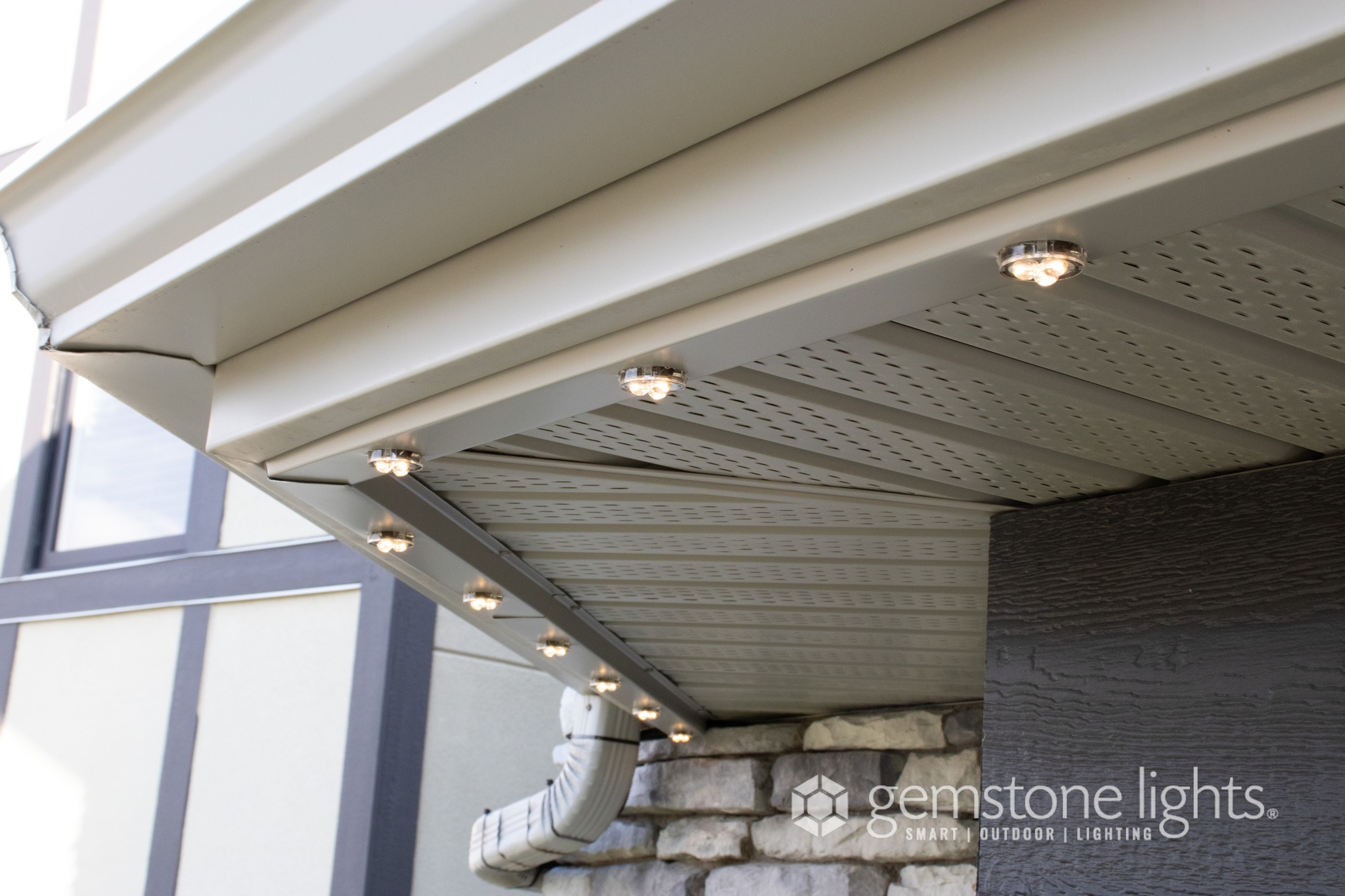

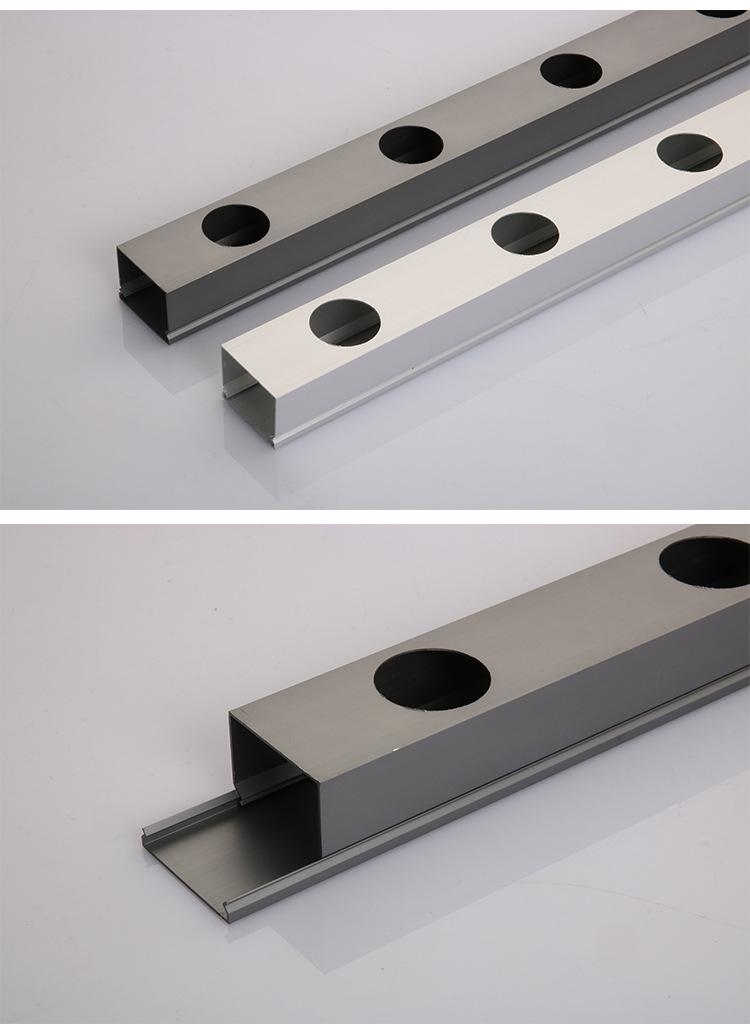

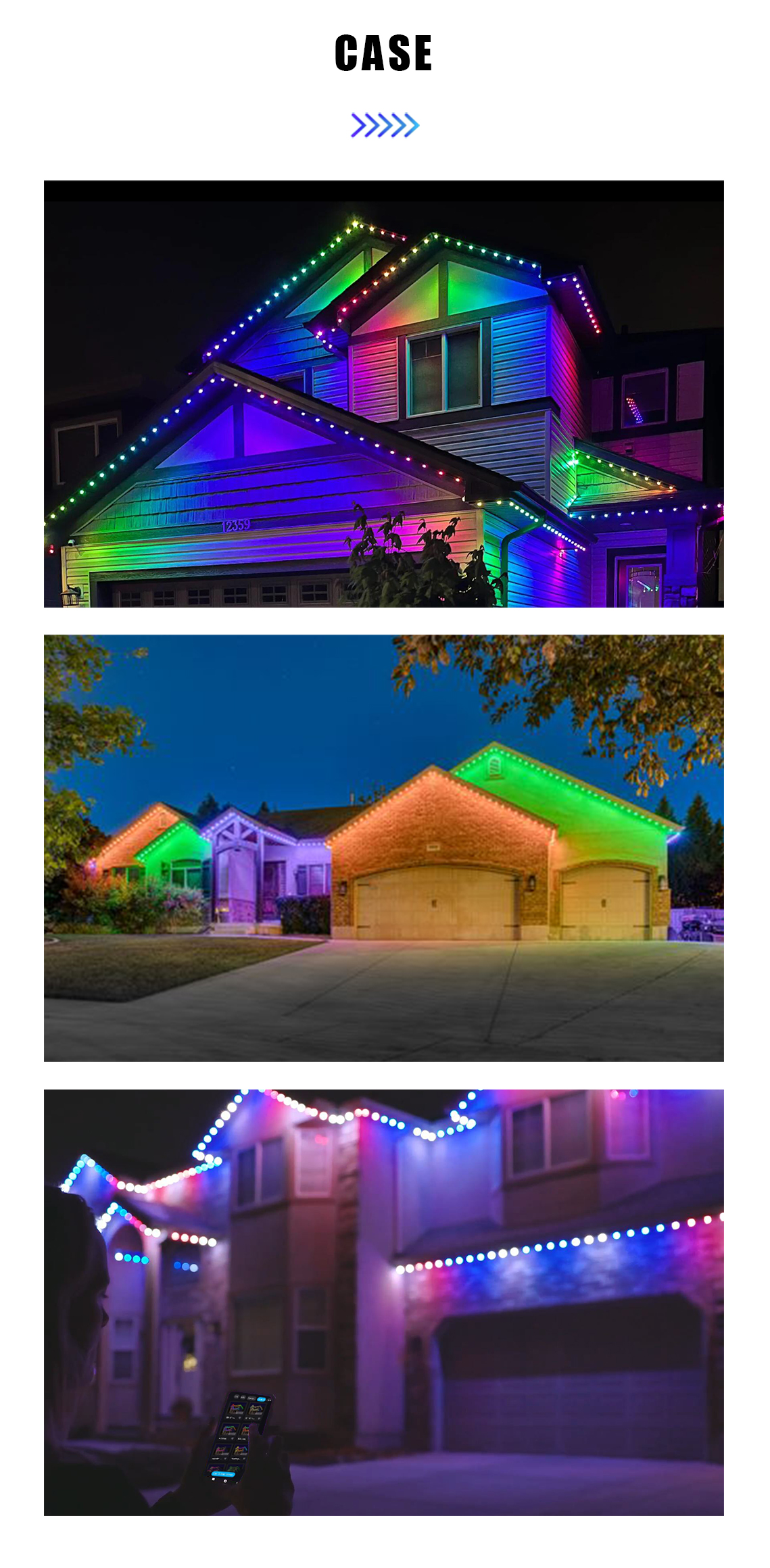

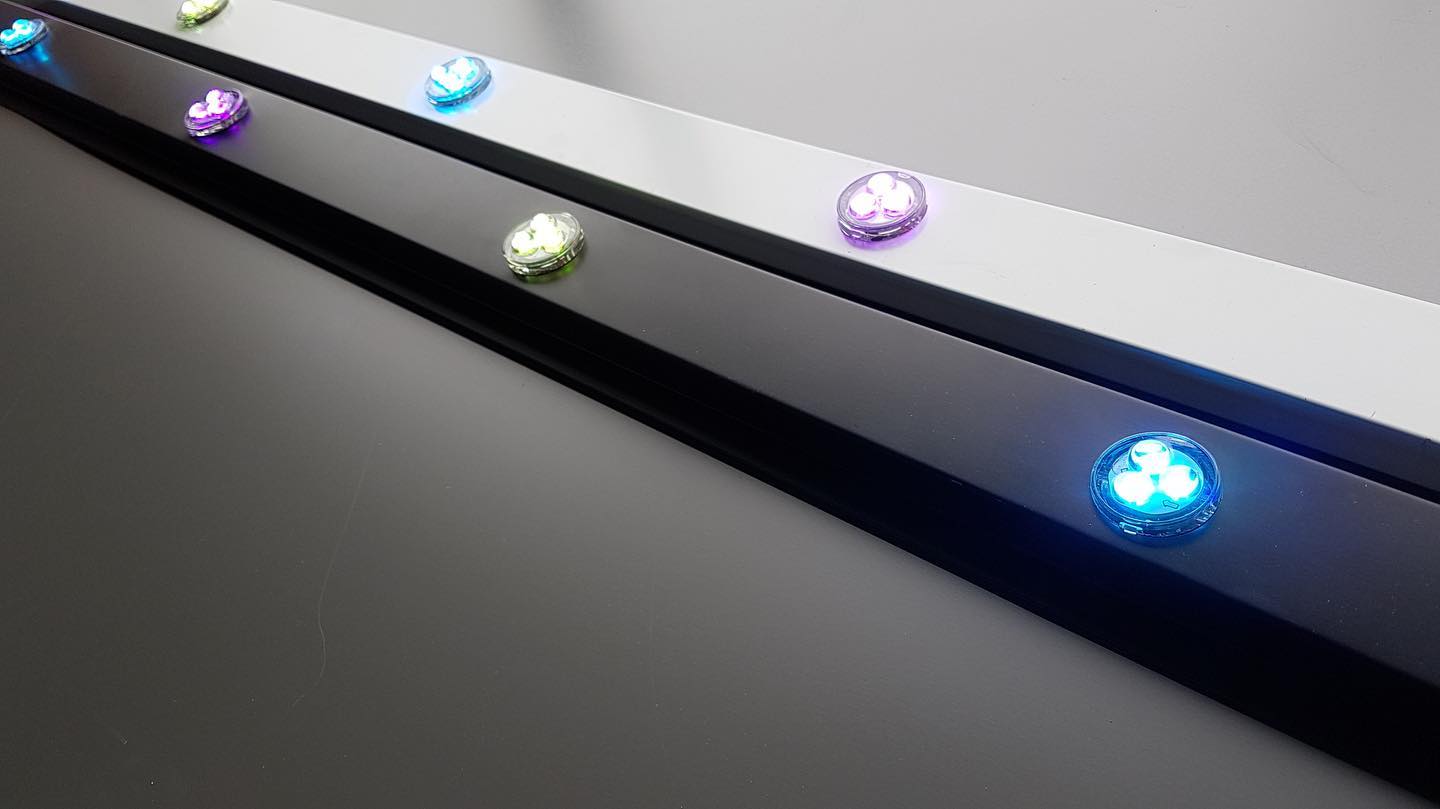

Installation display

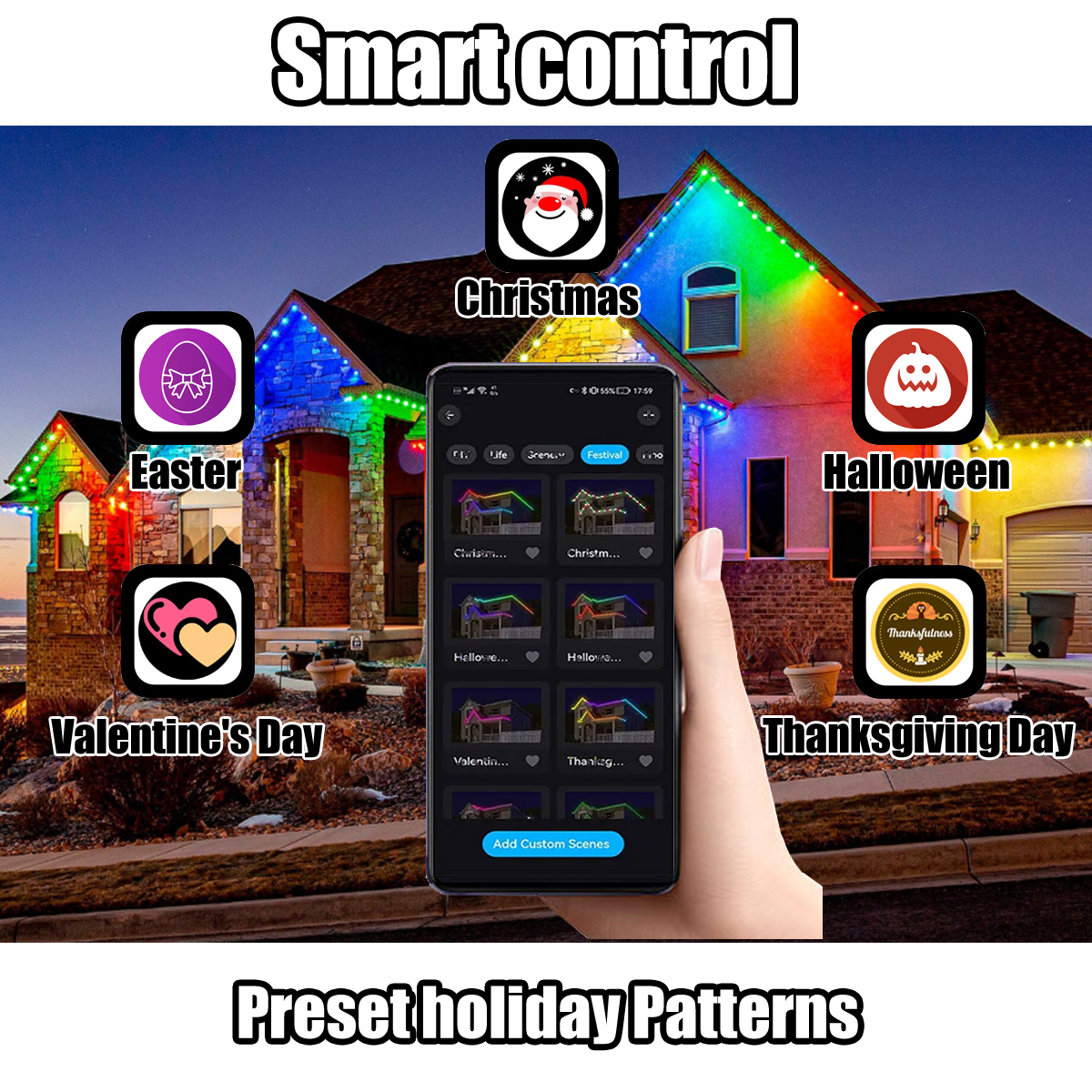

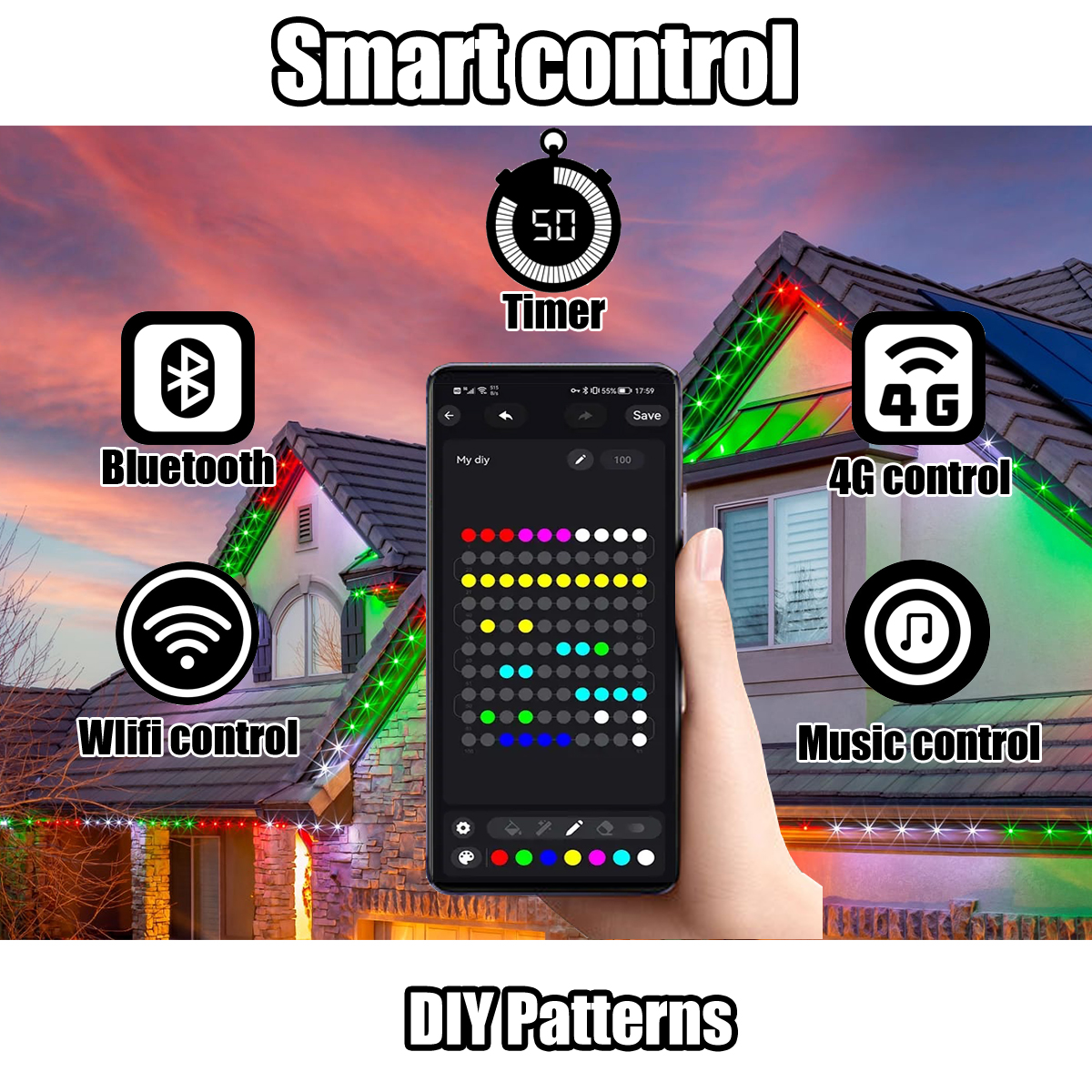

Operating instruction
✓
1) Multi color function: Can freely smear or erase the color of each segment, and also set the gradient effect.
✓
2) Scene settings: Choose the lighting effect you like according to the different scene.
✓
3) Playlist mode: Multiple light dynamic modes built in, can set the time of lighting effects and enter cycle mode.
✓
4) Smear function: Address each individual light, individual light color can be edited.
✓
5) Music Mode: Synchronization function of lighting and music rhythm.
Why choose Our LED Light?
★
1. PCB board: We use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer.
★
2. LED Chip: Epistar brand led chips. We could do other brand chips according to customer's request, such as, Cree, Samsung, Philips, San'an, and Smalite led chips. We only focus on high quality led chips.
★
3. Color Rendering Index: We use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
★
4. Uniformity: It's very important to our customers that we always keep the same bin color temperature for all our led strip lights.
★
5. Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.
Frequently Asked Questions
What is the operating voltage for these LED pixel lights?
The pixel lights require a DC12V power supply. Do not use a power supply higher than 12V, as this will damage the pixels.
Can each LED pixel be controlled individually?
Yes, each 30mm LED pixel light is equipped with a UCS2904 IC chip, allowing for separate control of each individual pixel.
Are these LED pixel lights waterproof?
Yes, they have a waterproof rating of IP65-IP68 with silicone waterproof protection, making them ideal for various outdoor and indoor lighting projects.
Can I customize the cable length and spacing between lights?
Absolutely. The standard string is 1 meter long with 5 lights spaced 20cm apart, but both the spacing and the number of lights on the string can be fully customized.
What types of chips and PCB boards are used in production?
We use 100% pure copper PCB boards (at least 2 ounces, up to 4 ounces) for superior heat dissipation, and premium LED chips such as Epistar, Cree, Samsung, or Philips, depending on your custom needs.
What is the warranty period for this product?
These 30mm LED pixel lights come with a 2-year warranty and are certified by CE, RoHS, and UL.
