Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
1 / 4
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop
Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop

Modern Aluminum Deep Anti-Glare COB LED Downlight Recessed Ring Ceiling Spotlight IP54 with CRI 90 and 5-Year Warranty for Shop

Send Inquiry

Product Description

Product Description

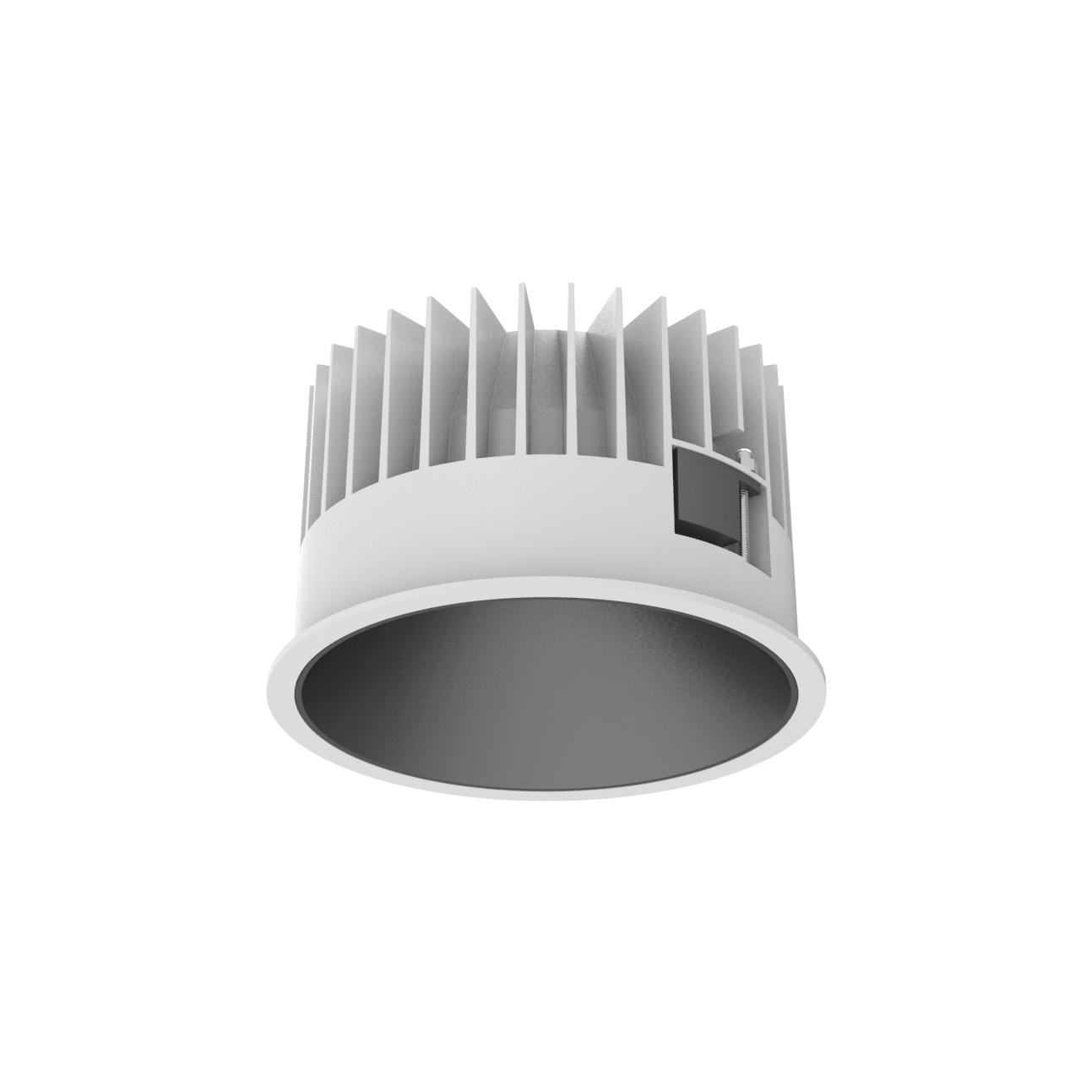

LED Downlight View 1
LED Downlight View 2
LED Downlight View 3

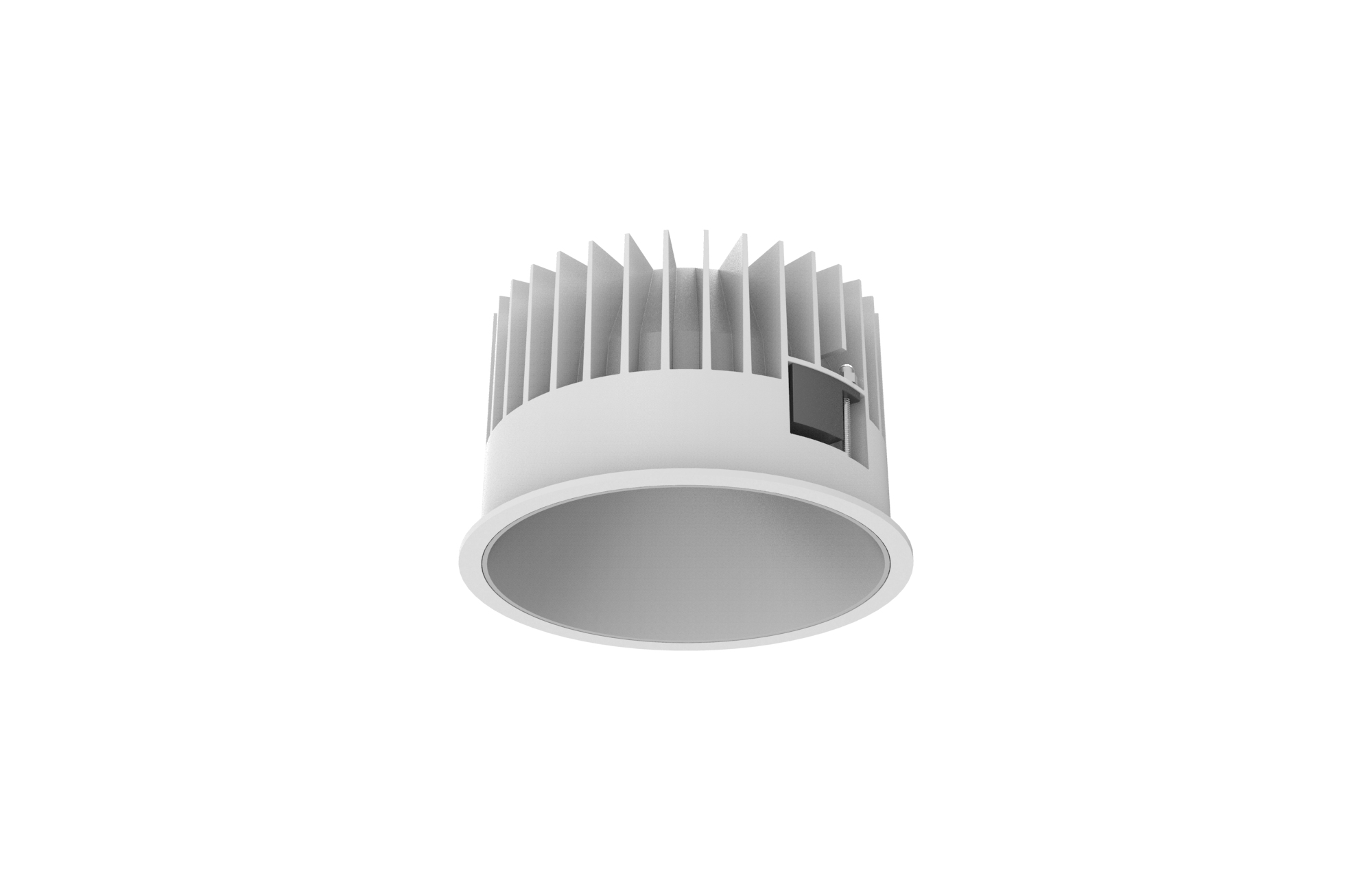

LED Downlight View 4
Specification
Item Value
Color Temperature (CCT) 2700K / 3000K / 4000K
Lamp Luminous Efficiency (lm/w) 80
Color Rendering Index (Ra) 90
Light Source COB
Support Dimmer Yes
Lighting Solutions Service Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Application Shop, Mall, Restaurant, Museum, Hotel, Residential
Design Style Modern
Lifespan (hours) 50000
Working Time (hours) 50000
Product Weight (kg) 16
Input Voltage (V) 220-240
Lamp Luminous Flux (lm) 1059-3370
CRI (Ra>) 80
Lamp Body Material Aluminum
IP Rating IP54
Model Number DP145R
Install Style Downlights
Warranty (Year) 5-Year
Dimmable DALI / TRIAC / 1-10V
Packing & Delivery
Single Unit Package
Box Dimensions: L105 * W105 * H125 mm
Quantity: 1 pc / box
Gross Weight (GW): 0.50 kg / box
Outer Carton Package
Carton Dimensions: L430 * W430 * H300 mm
Quantity: 32 pcs / CTN
Gross Weight (GW): 17.5 kg / carton
Frequently Asked Questions
Q1: What are the primary applications for the DP145R LED downlight?
The DP145R is designed for modern commercial and residential spaces, including shops, shopping malls, restaurants, museums, hotels, and high-end residential projects.
Q2: What color rendering performance does this downlight offer?
This downlight features a high Color Rendering Index (CRI) of Ra 90 (with configurations of Ra 80 also available), ensuring highly accurate, vibrant, and natural color representation.
Q3: What dimming and control options are supported?
It supports multiple professional dimming systems, including DALI, TRIAC, and 1-10V control systems, allowing for smooth integration into smart lighting systems.
Q4: What project design services are available for this lighting fixture?
We support comprehensive project layout designs, including lighting and circuitry planning, DIALux evo, LitePro DLX, Agi32, and AutoCAD layouts, alongside on-site metering and installation guidance.
Q5: What are the physical dimensions and packaging specifications?
Each individual light is packaged in a box measuring L105*W105*H125mm (GW: 0.50kg). The outer shipping carton contains 32 units, measuring L430*W430*H300mm with a gross weight of 17.5kg.
Q6: How does the aluminum body benefit the downlight's performance?
Constructed from high-grade aluminum, the lamp body ensures optimal heat dissipation, which directly contributes to its long 50,000-hour lifespan and stable operation in IP54 environments.
