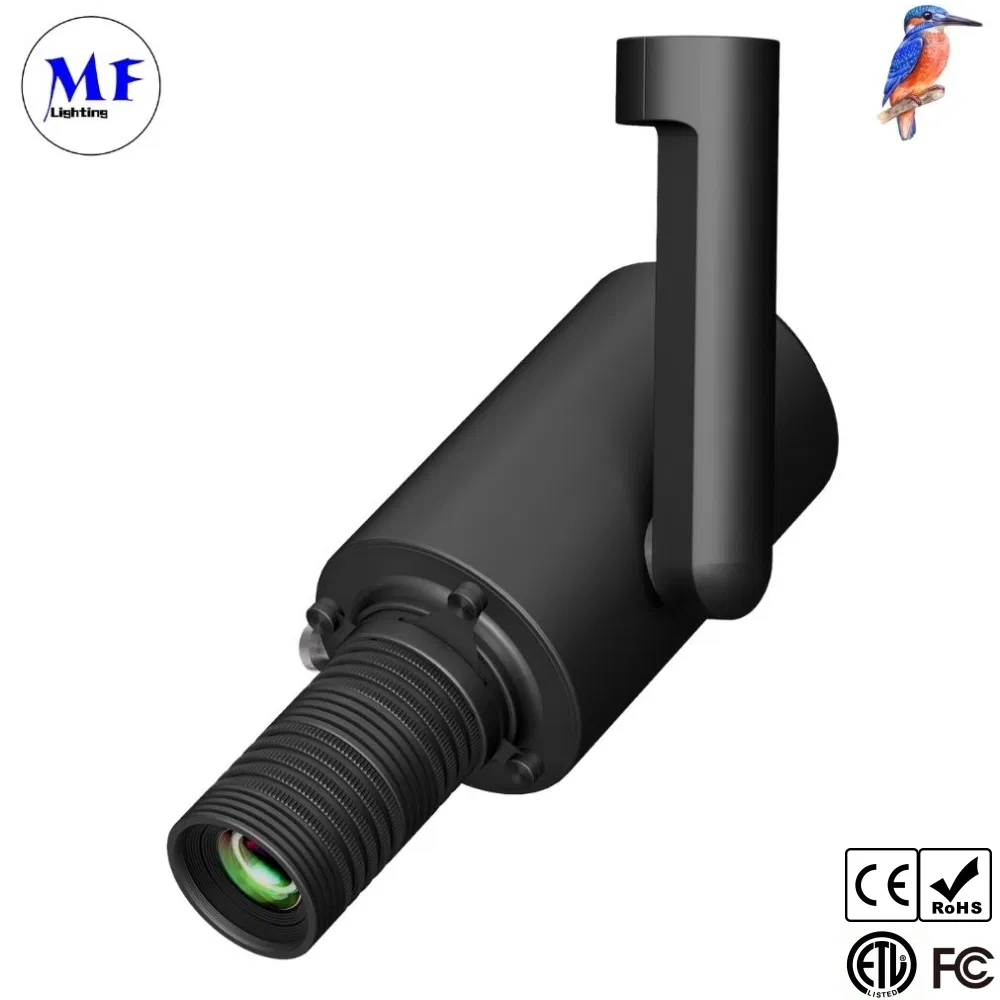

High CRI LED Shapeable Track Spot Light with UV Color ND CPL Fliter for Art Auction Venue Art Auction Special Themed Exhibit Artist Studio Art Gallery

Still deciding? Get samples of $ !
Request Sample

Product Description

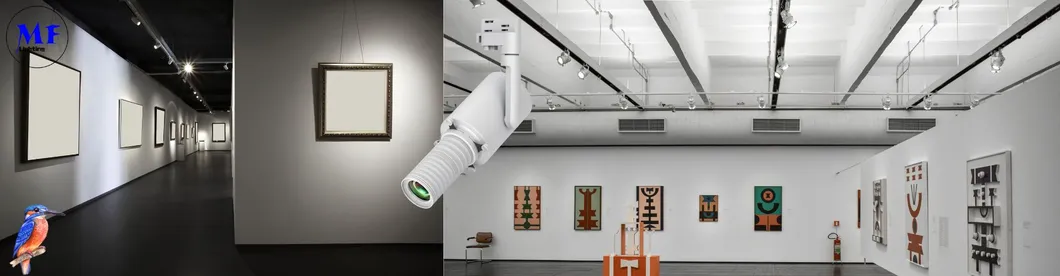

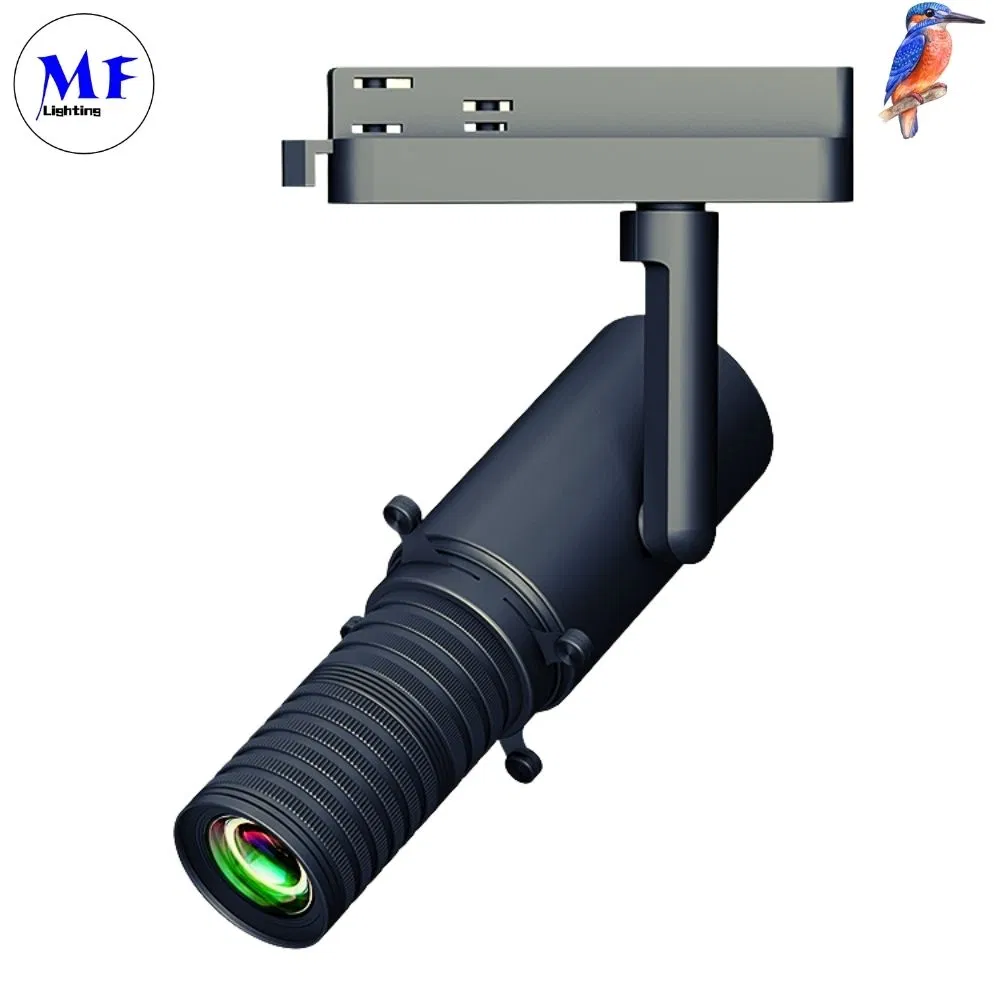

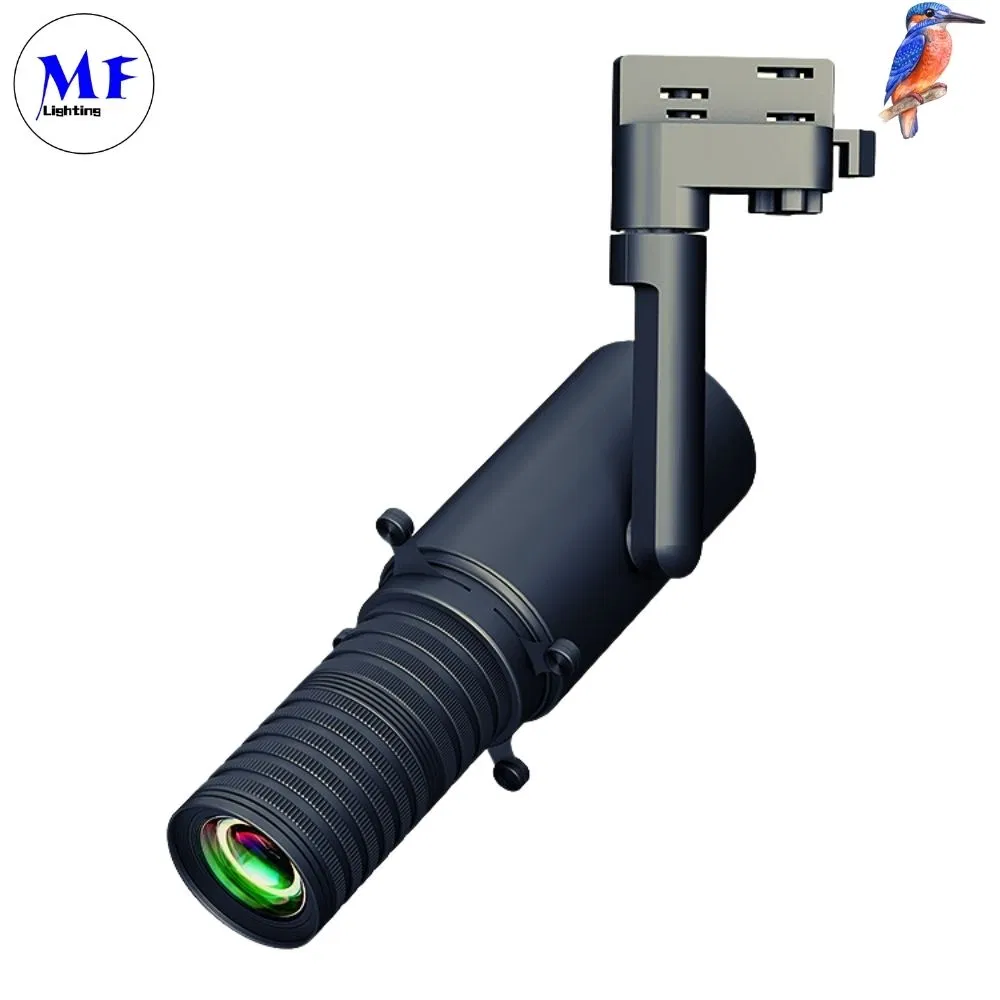

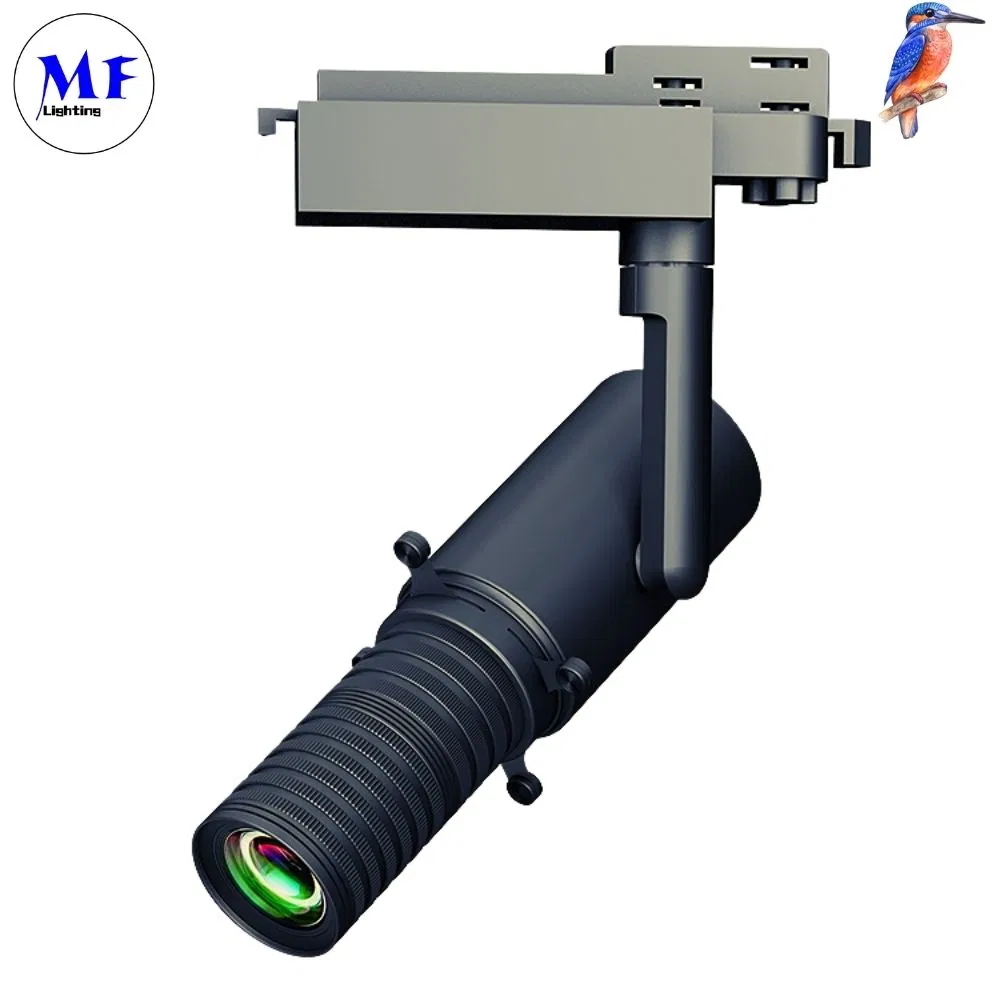

High CRI LED Shapeable Track Spot Light

High Cri LED Shapeable Track Spot Light With UV Color ND CPL Fliter for Art auction venue Art auction Special themed exhibit Artist studio art gallery

Basic Info
Model NO.
Shapeable Track light Kingfisher 1
Power
8W/10W/20W/28W/37W
Emitting Color
Changeable
Base Type
EU11
Wire
4wires/3wires/2wires/6wires/Mono/Other
IP Rating
IP44
Certification
CE, ETL, RoHS, SAA
Input Voltage
AC 220V-240V/48V DC
LED Chips Brand
O-Sram
System Illumination
250-1550lm
Beam Angle
25-45°/20-35°/20-36°/15-25°
CRI(Ra)
≥97
Voltage (AC)
48VDC/220-240V
Color of Housing
Black/White
Installations
Magnetic 2.0 3.5/Embedded(Cutout 40/70mm)/Powergea
Support Filters
32/58/Na
Installations 2
Track Adapter/Surface Mount
Driver
Tridonic
Warranty
2years
Configuration
Color/UV/ND/CPL Filters
Transport Package
Carton Box
Origin
China
Production Capacity
10000pieces/Year

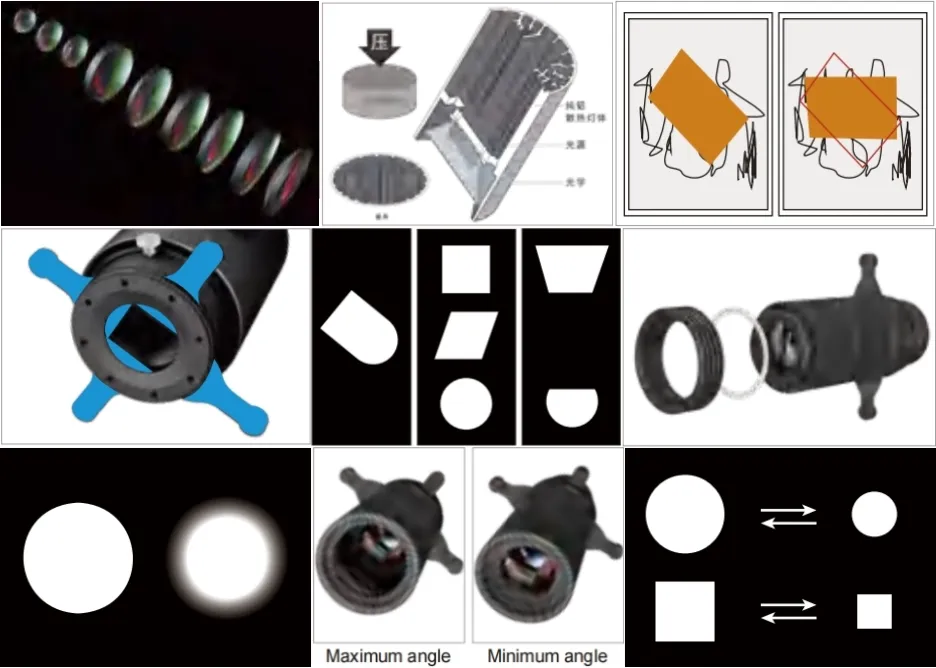

Feature
  • Cold forging integrated radiator design
    A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity 226W/m.K.
  • 360° manual rotation design
    Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device designed to solve the 360° rotation of the projection and light spot.
  • High-definition optical lens design
    Formed by a plurality of high-definition coated optical lenses. The whole lamp features high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, and a good spot cut-off line. A new optical path specially designed for COB light sources.
  • Optical-grade variable aperture design
    An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
  • Multi-layer dry damping design (Focus)
    A focusing device not requiring the application of lubricating oil, providing a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.
  • Multi-layer dry damping design (Zoom)
    Short stroke, considerable focal length, high short-focus and long-focus recognition visible to the naked eye. The linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.
Feature Details
Specification

Applications: High-end commercial space; cultural exhibitions; Museums and galleries; Gobo projection and other creative lighting.

Main functions: Changing spot shape/size/sharpness/directions, dim CCT/brightness, compatible with various Filters such as color/UV/ND/CPL filters, etc.

Main Advantages: Completely original design with 8 core patents; high luminous efficiency, high spot uniformity, no distortion and blue edge, no color difference.

Model Power Luminous flux Ra Color temp Zoom range DIP CCT/Dimming G.W. Filter Specs Casing Color
T1008L 10W 300~350LM Ra>97 2700K/3000K/4000K 20°~35° Support (pick one of two) 0.61Kg 32mm Black/White
T2008L 20W 650~750LM Ra>97 2700K/3000K/4000K 15°~25° Support 1.21Kg 58mm Black/White
T1008L 10W 300~350LM Ra>97 2700K/3000K/4000K 25°~45° Support (pick one of two) 0.61Kg 32mm Black/White
T2008L 20W 650~750LM Ra>97 2700K/3000K/4000K 20°~36° Support 1.21Kg 58mm Black/White
T3008L 28W 850~950LM Ra>97 2700K/3000K/4000K 15°~25° Support 1.29Kg 58mm Black/White
T4008L 37W 1050~2100LM Ra>97 2700K/3000K/4000K 15°~25° Support 1.41Kg 58mm Black/White
T3008L 28W 850~950LM Ra>97 2700K/3000K/4000K 20°~36° Support 1.29Kg 58mm Black/White
T4008L 37W 1050~2100LM Ra>97 2700K/3000K/4000K 20°~36° Support 1.41Kg 58mm Black/White
D0870L 8W 250~300LM Ra>97 2700K/3000K/4000K 20°~35° Nonsupport 0.37Kg 32mm Black/White
D0870L 8W 250~300LM Ra>97 2700K/3000K/4000K 25°~45° Nonsupport 0.37Kg 32mm Black/White

GZ series shapeable track light features a compact design, with a dry mechanical damping system. It achieves stable and reliable front and rear zoom, spot shaping and projection, and ultra-high cost performance, very suitable for current new commercial lighting design and designs without a main lamp. Its photoelectric performance is the same as the DQ Series.

GZ Series Shapeable Track Light

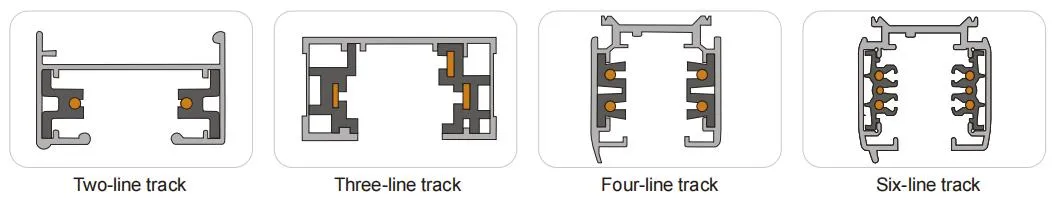

Track Support
Track Support
Spot Effect
Spot Effect
Projection Support
Projection Support
Control

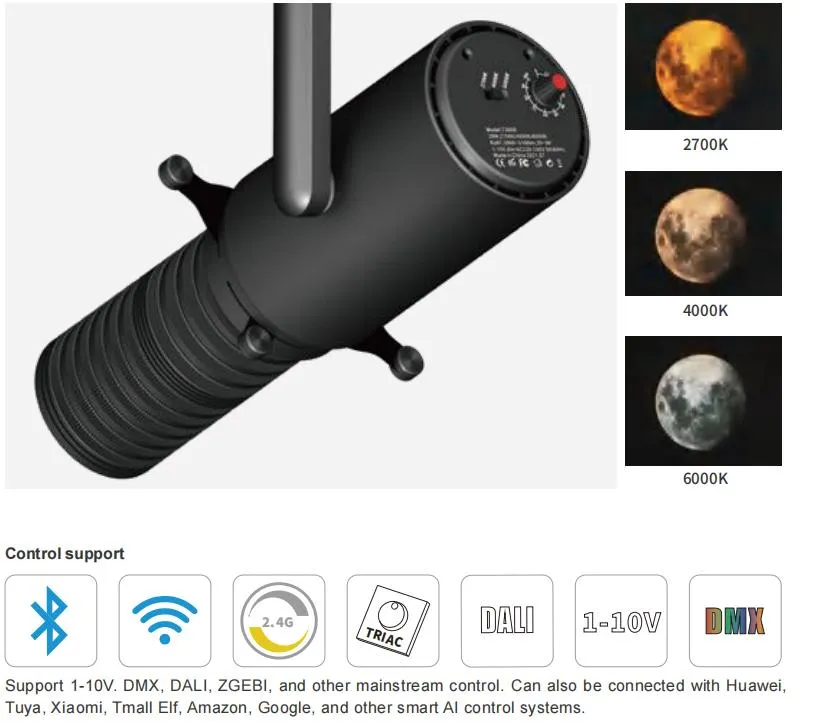

DIP color temperature coupled with the single lamp knob dimming design can easily achieve single lamp dimming, spot shaping and color temperature adjustment. It can be used alone or can alternatively be equipped with other dimming devices.

Control System
Dimension

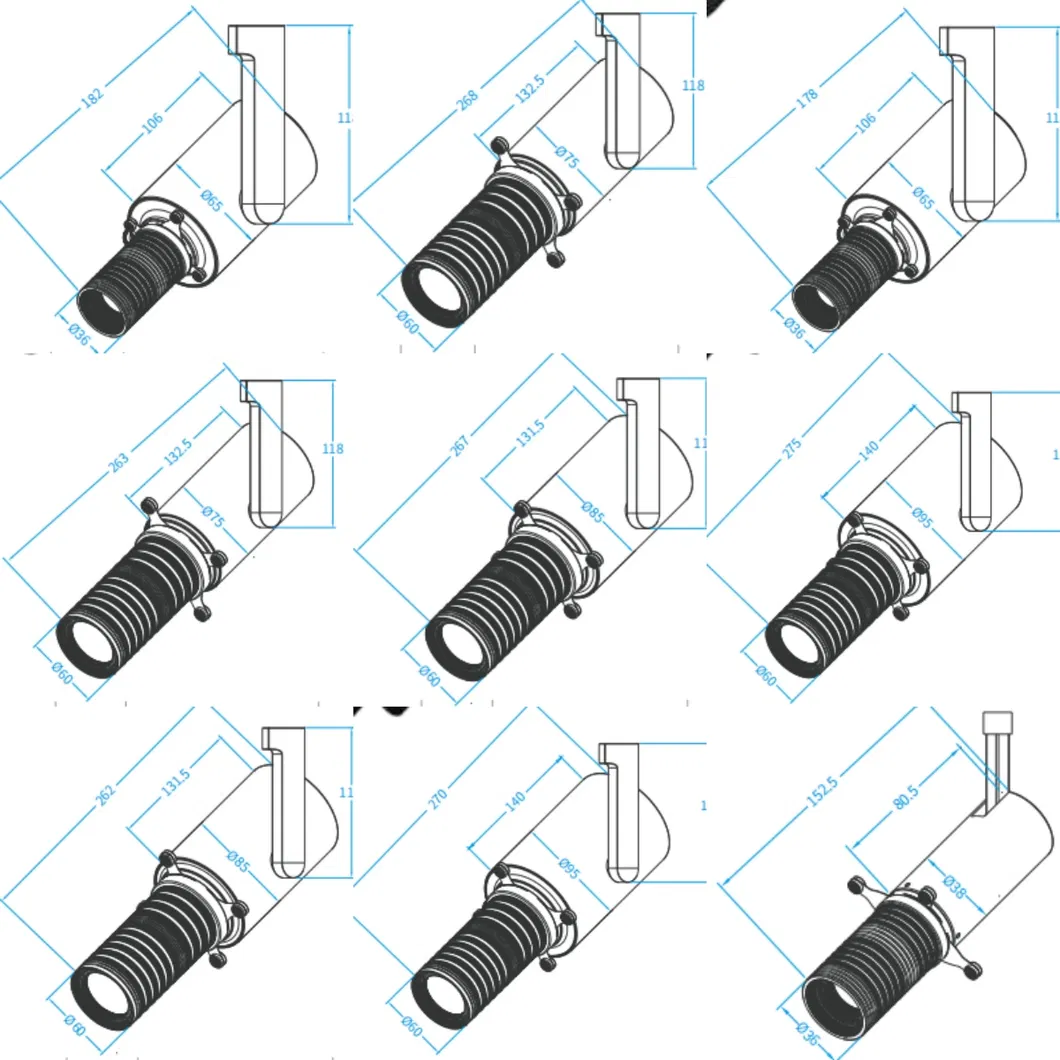

Dimensions Part 1

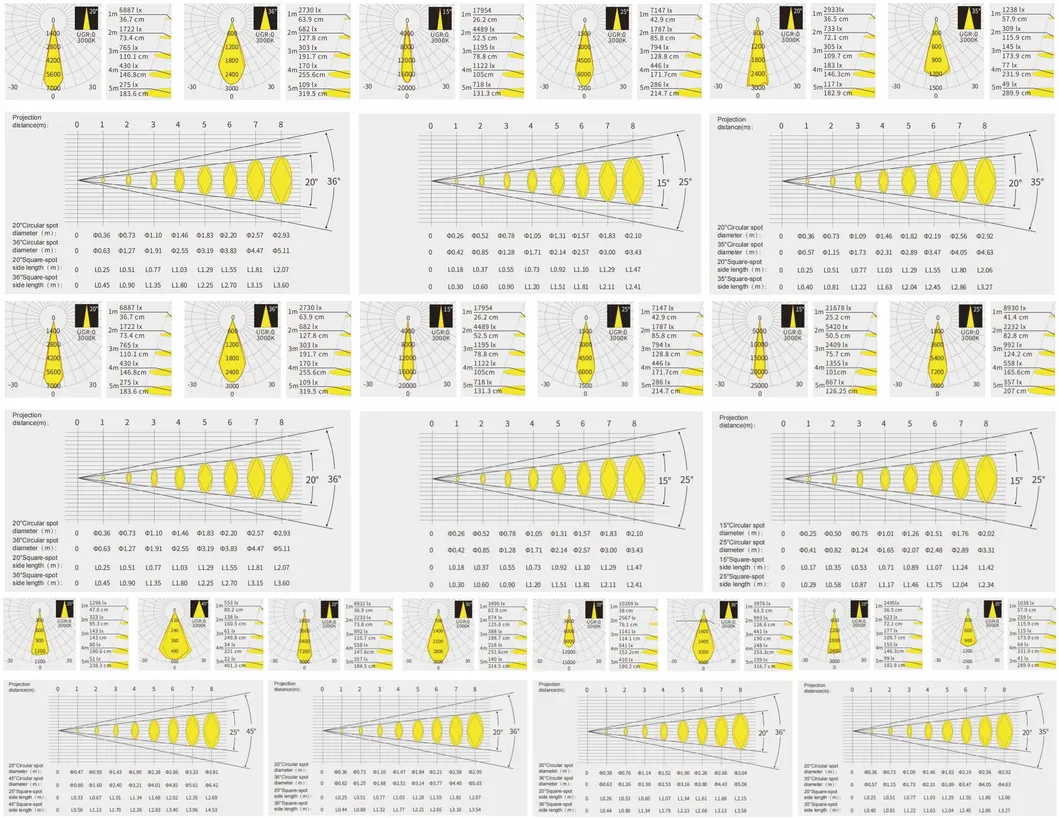

Dimensions Part 2
Installation Instructions

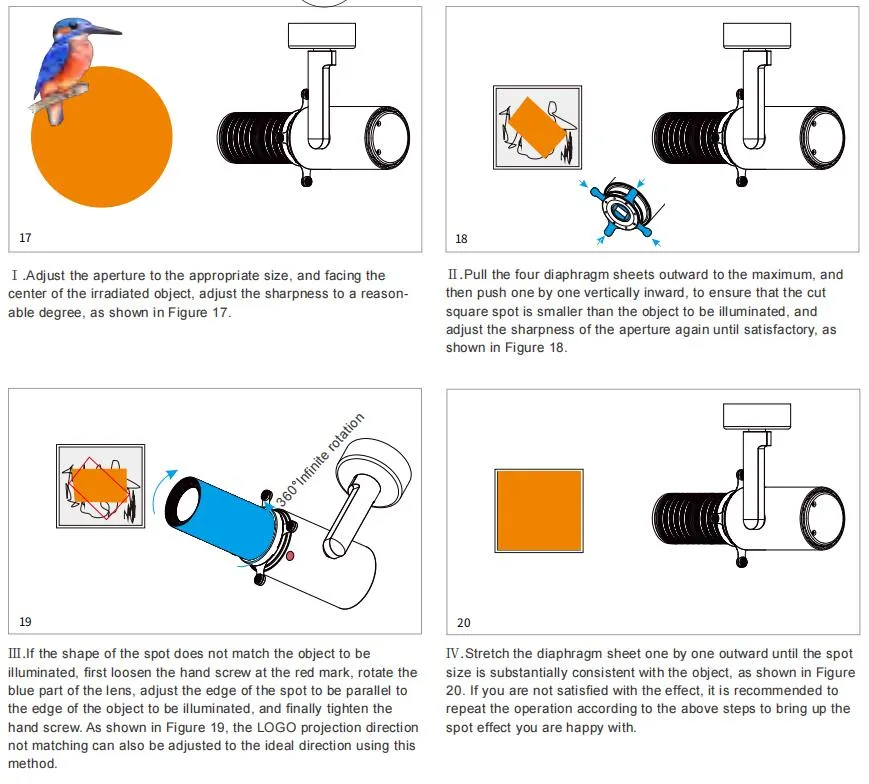

Installation Step 1

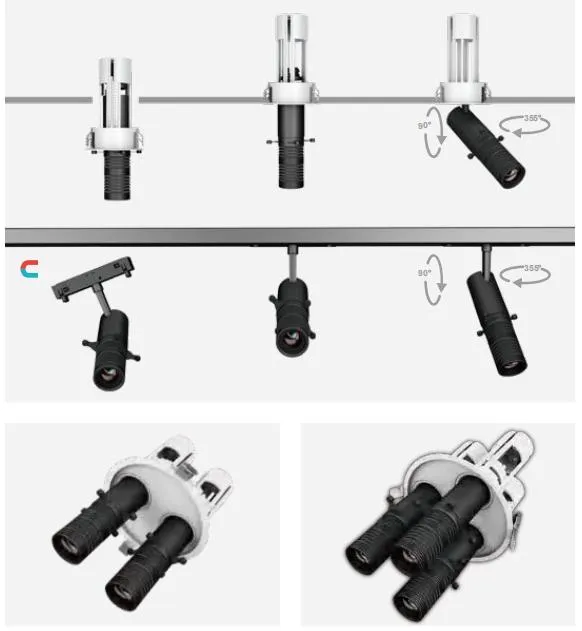

Installation Step 2

A mini shapeable track light with a maximum diameter of only 36mm, and a maximum angle of up to 45 degrees for D0870L/D0840L. Suitable for any commercial lighting. Supports embedded installation, magnetic installation, and track installation. Photoelectric performance is identical to the DQ series.

Functions

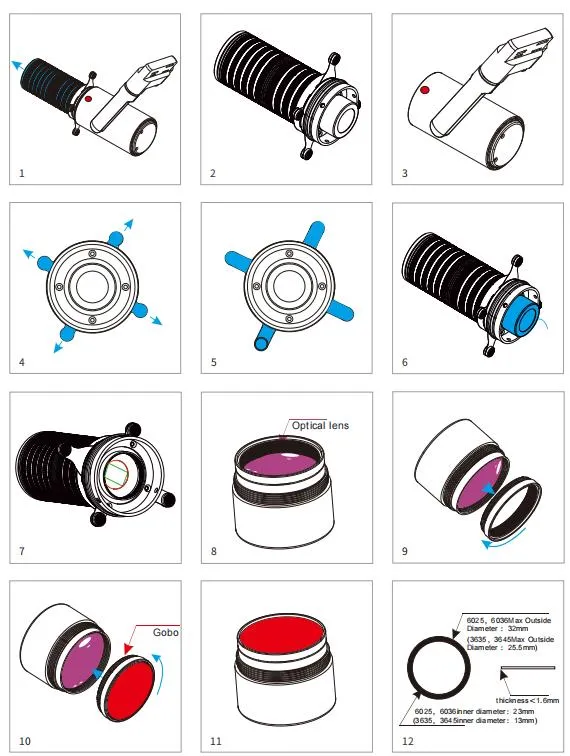

I. First loosen and pull out the hand screw (red part) shown in FIG. 1, and then pull out the main part of the lens (blue area) to separate it from the lamp body: Figure 2 shows the optical lens after separation, and Figure 3 shows the lamp body after separation.

II. Stretch the four diaphragm sheets on the optical lens of Figure 4 outward to the maximum extent as shown in Figure 5.

III. Unscrew the blue part of the optical components at the bottom of the lens in Figure 6 and separate it as shown in Figures 7 and 8. Then separate the lens face ring in FIG. 8 as shown in FIG. 9.

IV. Find the gobo device delivered by the manufacturer (the red part in Figure 10), install it as shown in Figure 10, reinstall the optical lens as shown in Figure 11, reinstall the lens as shown in Figure 6, and finally reinstall the lamp body as shown in Figure 1. The LOGO lamp assembly is complete.

V. You can design and make a variety of image gobos. The specifications are shown in Figure 12.

Assembly Functions
Daily Maintenance

I. When the edge of the circular spot becomes rough or granular (Figure 13) please open the lens and wipe the red part in Figure 7 with a dust-free cloth or eyeglass cloth.

II. When the edge of the square spot becomes rough or granular (Figure 14) please open the lens and wipe the green edge in Figure 7 with a dust-free cloth or eyeglass cloth.

III. When small shadows or particles appear in the middle or edge of any spot (Figures 15, 16), open the lens and wipe the optical lens in Figure 8 with a dust-free cloth or eyeglass cloth.

Maintenance Details
Application

LED track lights find extensive application in galleries and art museums, where they play a crucial role in illuminating and accentuating artwork and exhibitions. With their versatility and precision lighting capabilities, these lights enhance the visual experience and create an immersive atmosphere for visitors. In gallery spaces, LED track lights are used to highlight individual pieces of artwork, sculptures, or photography exhibits. The adjustable nature of track lights allows curators to precisely direct the light onto specific areas, emphasizing details, textures, and colors. This focused lighting helps bring out the true essence of the artwork, creating a captivating visual impact.

Art museums often feature diverse collections, ranging from classical masterpieces to contemporary installations. LED track lights offer the flexibility to adapt to different styles and mediums of art. They can be adjusted to cater to specific lighting requirements, such as warm or cool tones, depending on the artwork's characteristics. The dimming capabilities of LED track lights also allow curators to create customized lighting scenes that add depth and drama to the exhibition space. Furthermore, LED track lights provide energy-efficient solutions, ensuring long-lasting illumination while minimizing energy consumption. This is especially important for art institutions that aim to reduce their carbon footprint and operating costs.

Application 1

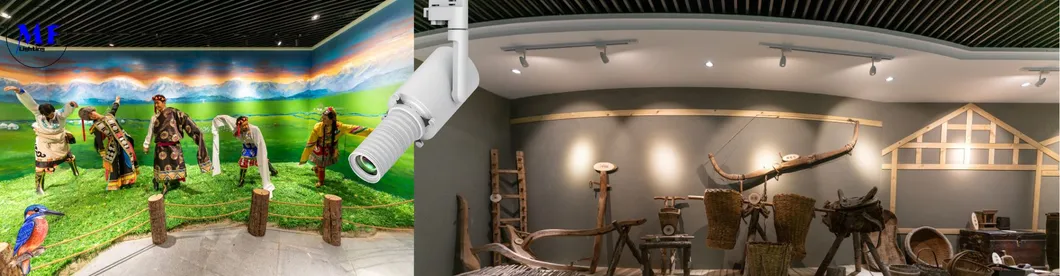

Application 2

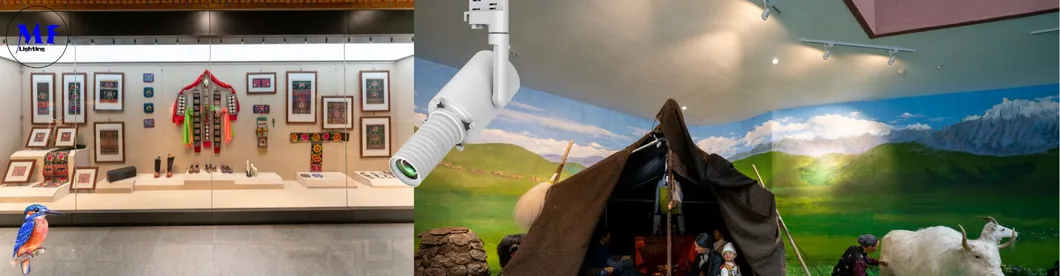

Application 3

Ideal for: Gallery exhibition spaces, Artwork display areas, Sculpture display zones, Photography exhibitions, Art museum galleries, Art auction venues, Special themed exhibits, Artist studios, College art galleries, Contemporary art installations, Historical artifact exhibitions, Fine art collections, Temporary art showcases, Artwork restoration workshops, Art education centers, Public art displays, Cultural heritage exhibitions, Artisan craft exhibitions, Multimedia art presentations, Experimental art installations, Interactive art exhibits, Outdoor sculpture parks, Artistic performance spaces, Art festivals and fairs, Artistic workshops and seminars, Art therapy centers, Virtual reality art experiences, Artisanal jewelry displays, Street art exhibitions, Artisanal ceramics and pottery showcases.

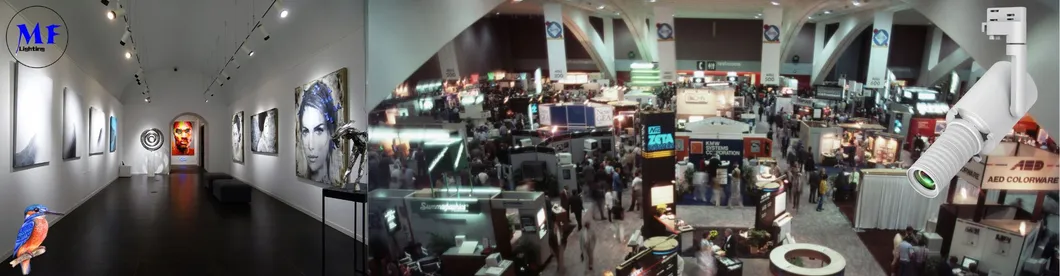

Application 4

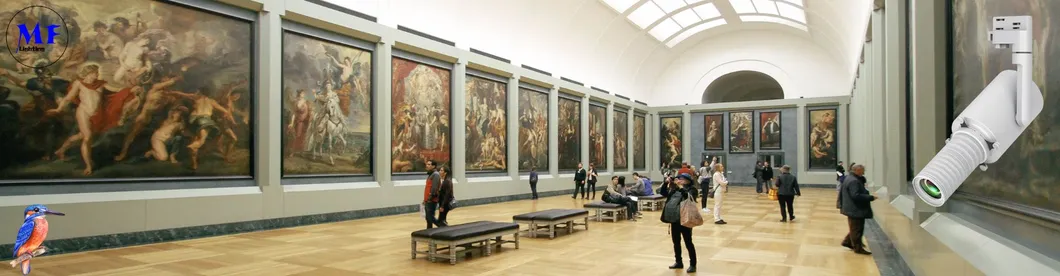

Application 5
Packaging & Shipping
Packaging Box

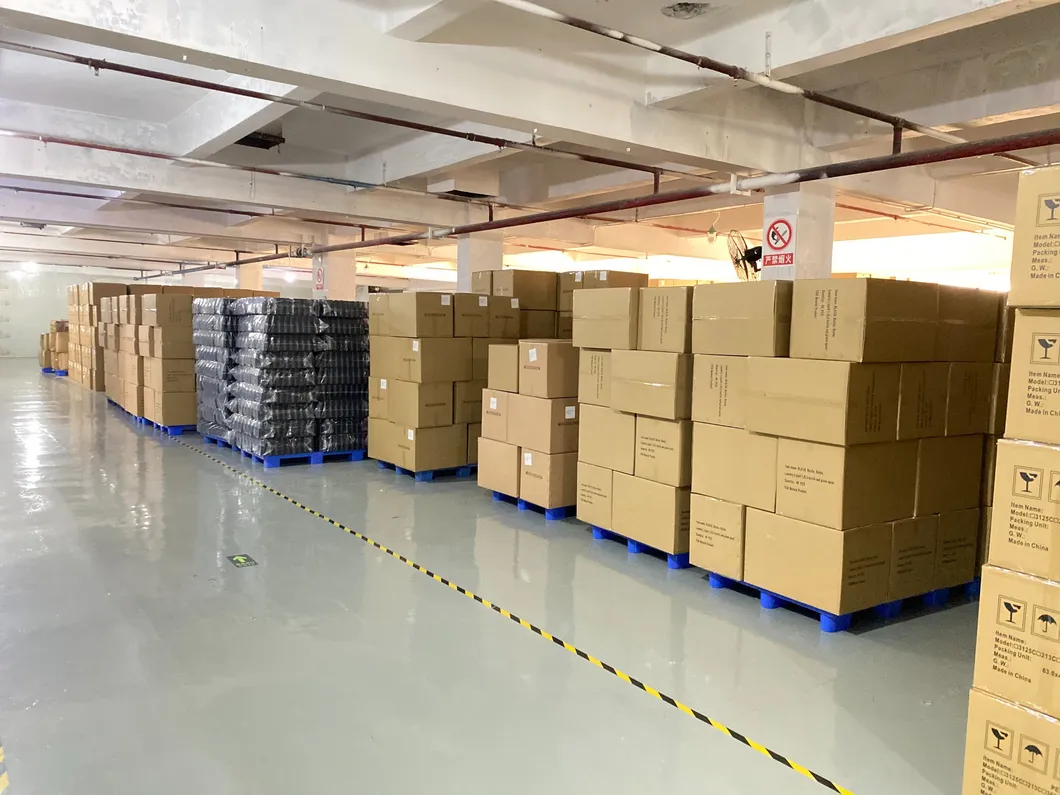

Packaging Foam
Shipping Carton

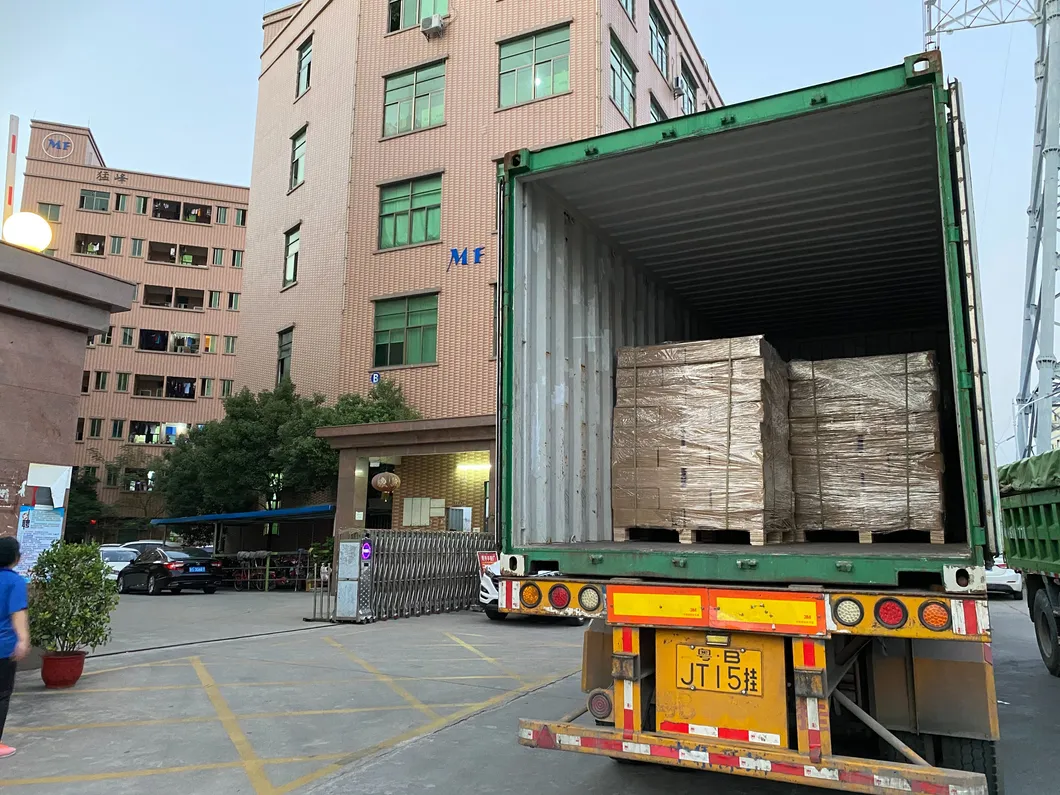

Warehouse Storage

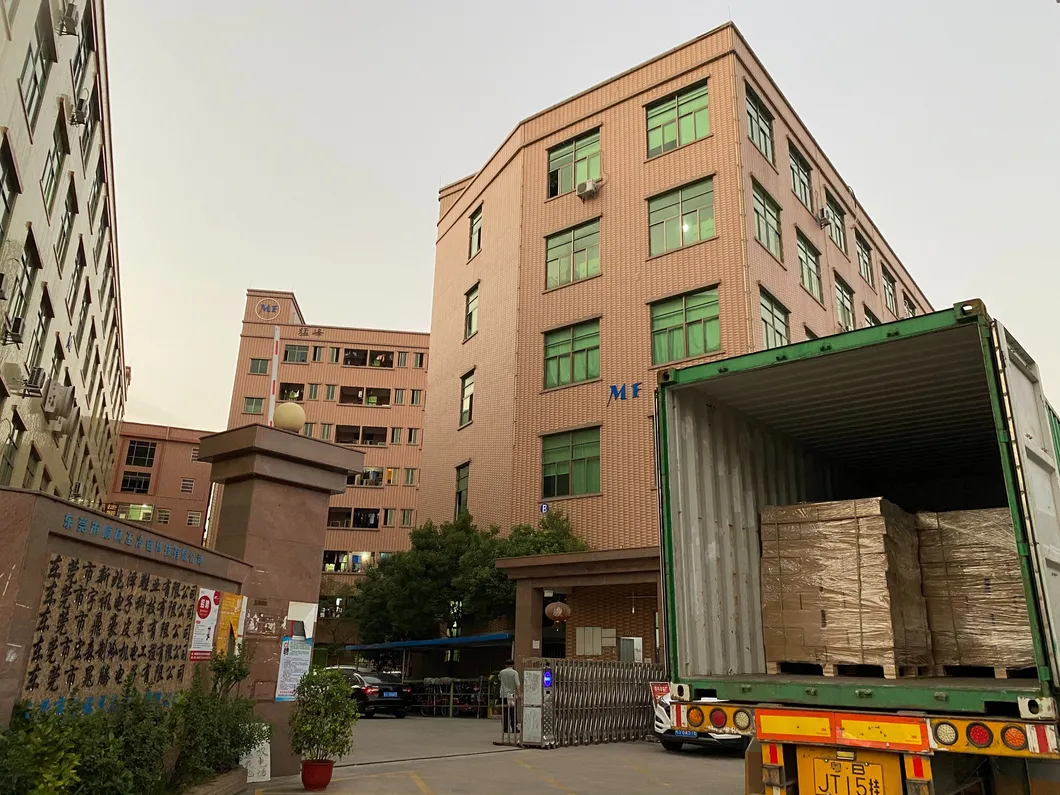

Loading Goods
International Logistics Quality Standards
Frequently Asked Questions
What are the primary applications for this shapeable track light?
This light is highly suited for high-end commercial spaces, cultural exhibitions, art galleries, museums, artist studios, and Gobo projection displays where precise light shaping is essential.
What filters can be integrated with this track spot light?
It is compatible with a wide range of filters, including color, UV (ultraviolet), ND (neutral density), and CPL (circular polarizing) filters to meet various professional display requirements.
How does the 360° manual rotation work?
By loosening the manual screw and turning the lens housing, you can achieve a full 360-degree rotation of the projected spot shape to align it perfectly with the target artwork.
What installation configurations are supported?
It supports standard track adapter installation, surface mounting, magnetic track systems (Magnetic 2.0 & 3.5), and embedded cutout mounting (40mm / 70mm).
Does this fixture require focus lubrication maintenance?
No. The lens uses a multi-layer dry damping mechanical system that does not require lubricating oil. It prevents issues like grease running or wearing down under high operational temperatures over time.
How do I adjust the sharpness and shape of the light spot?
You can change the shape of the spot by manually pulling or inserting the internal diaphragm plates or a custom gobo. Rotating the damping control allows you to sharpen or blur the edges of the light beam.
