Vactrim Light
Vactrim Light

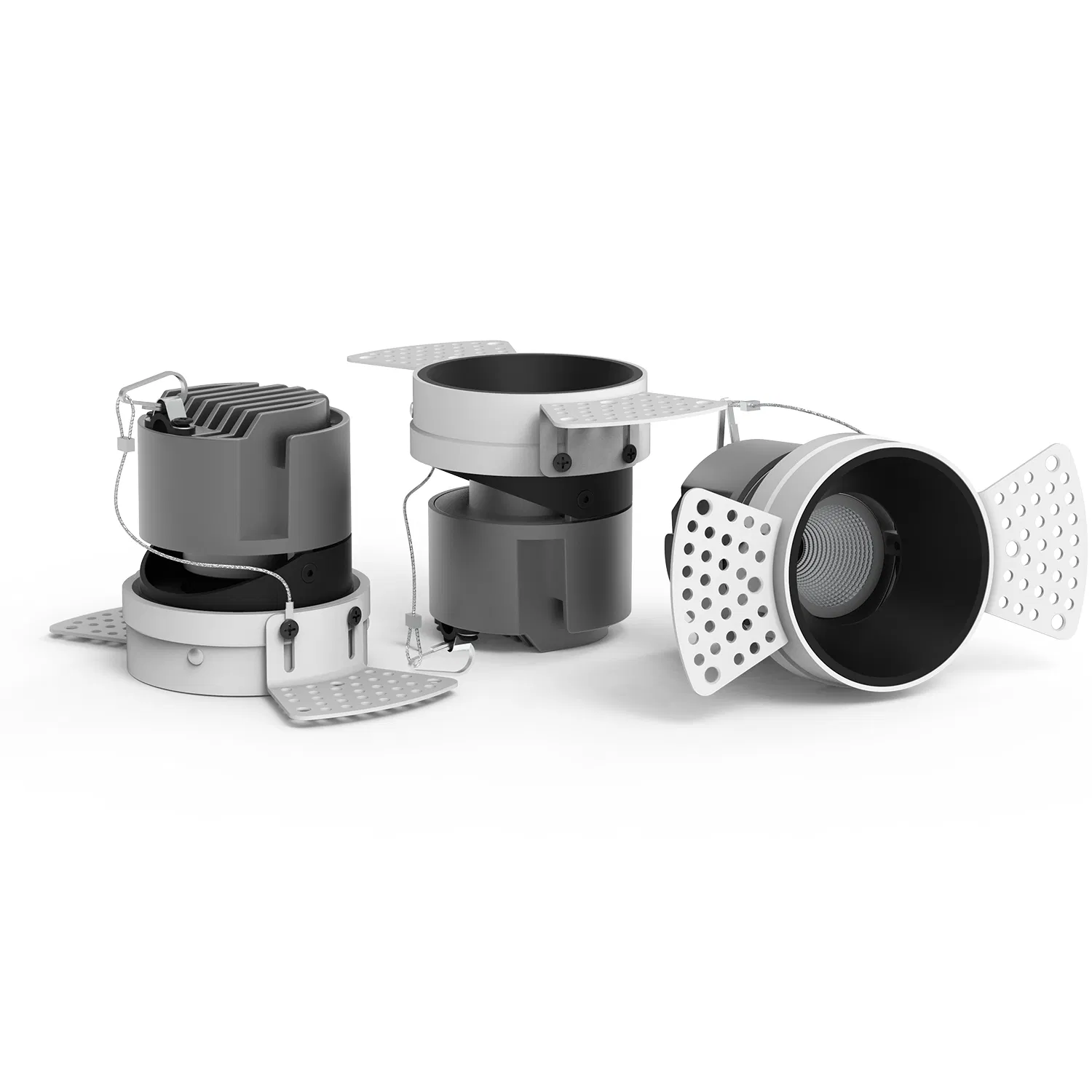

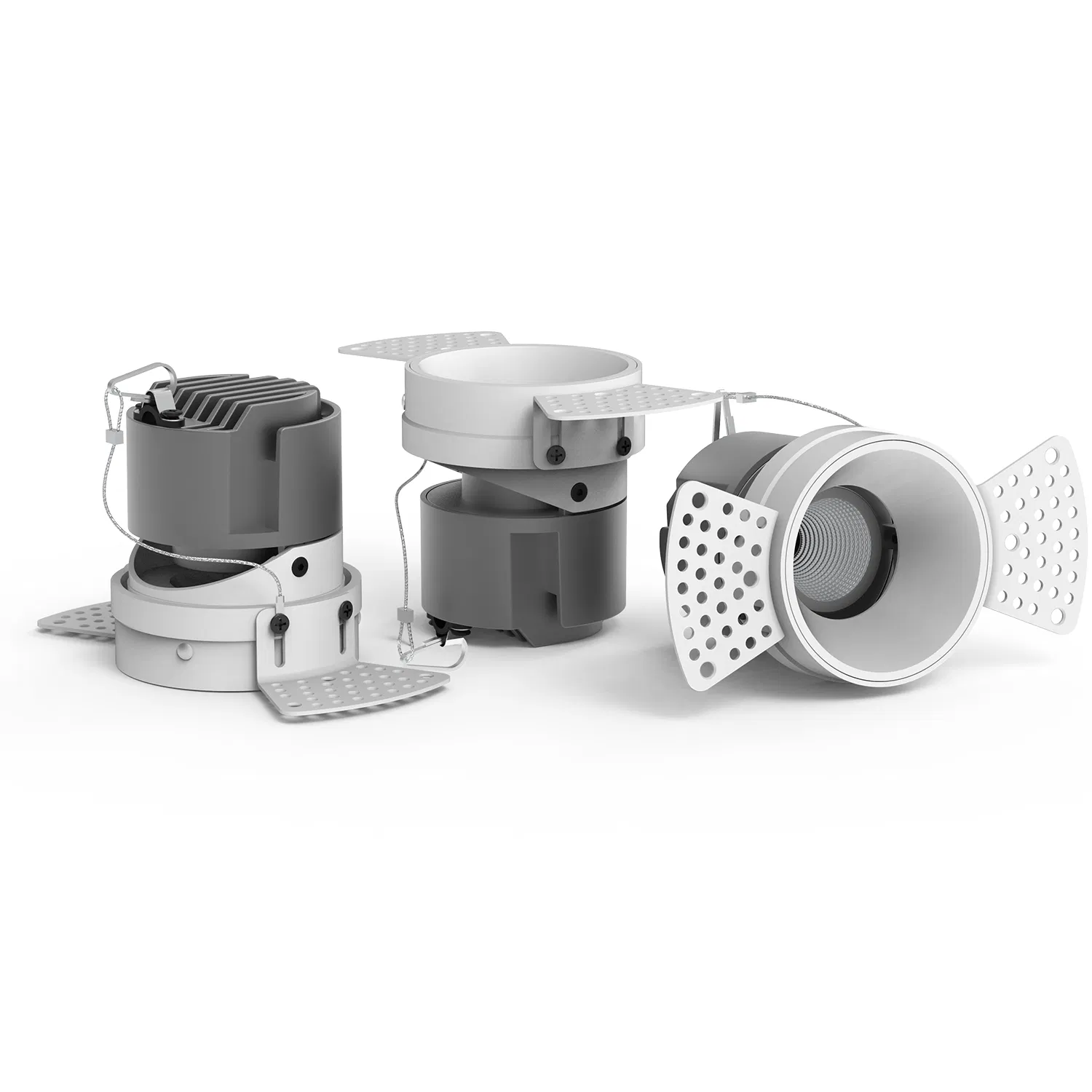

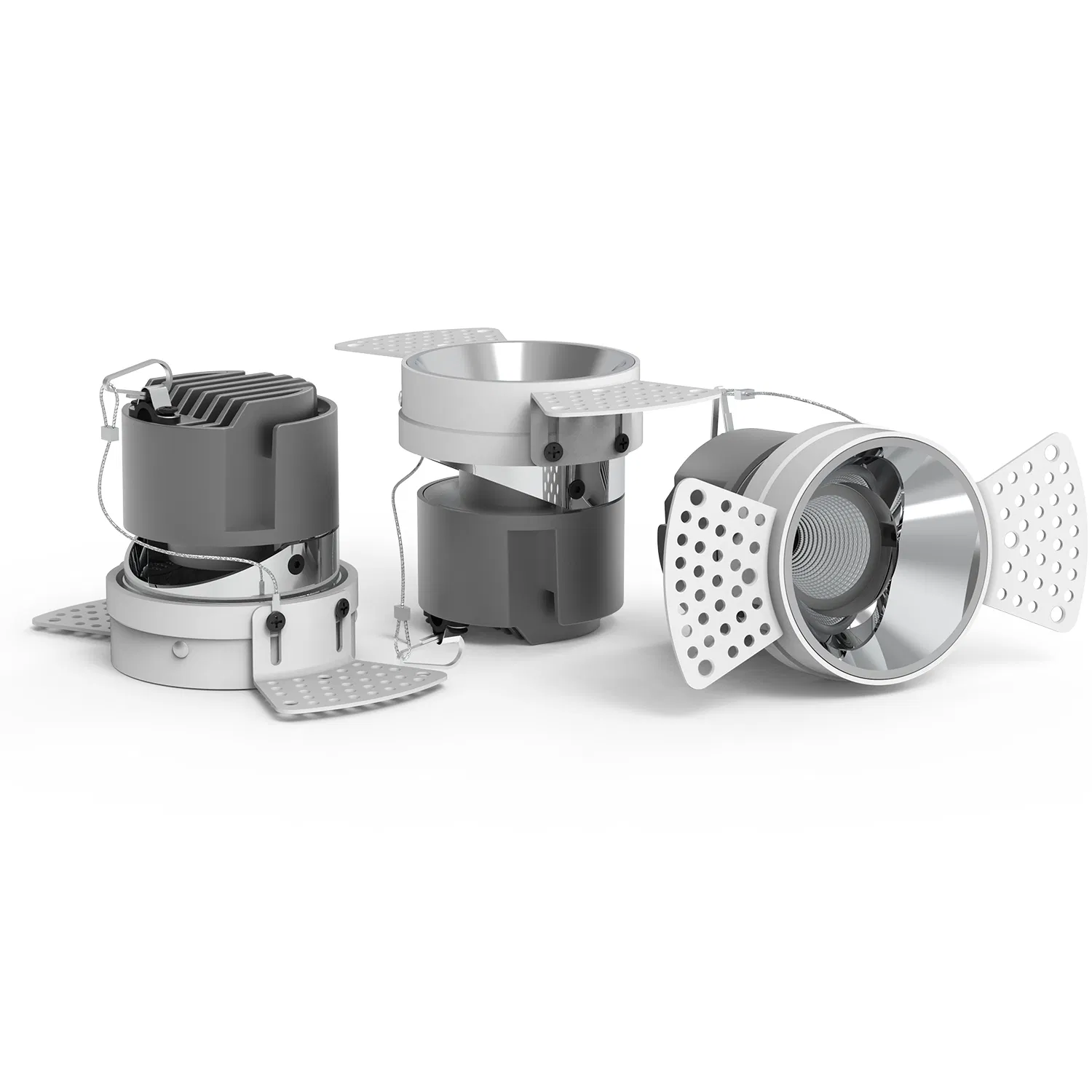

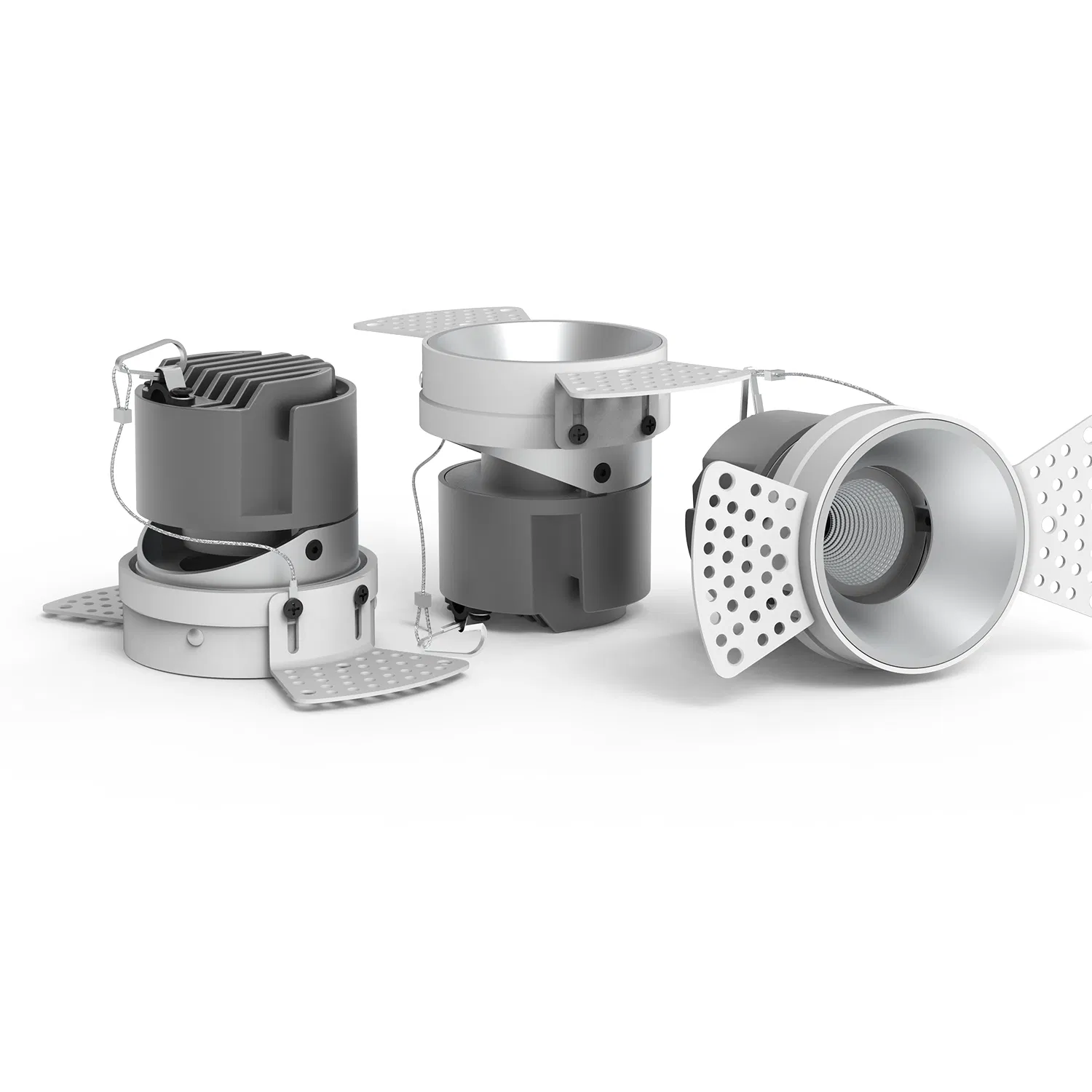

Recessed fixed/adjustable/square/trimless led wallwasher spotlight
Bridgelux/Cree led chip, CRI>92 and 130lm/W COB chip

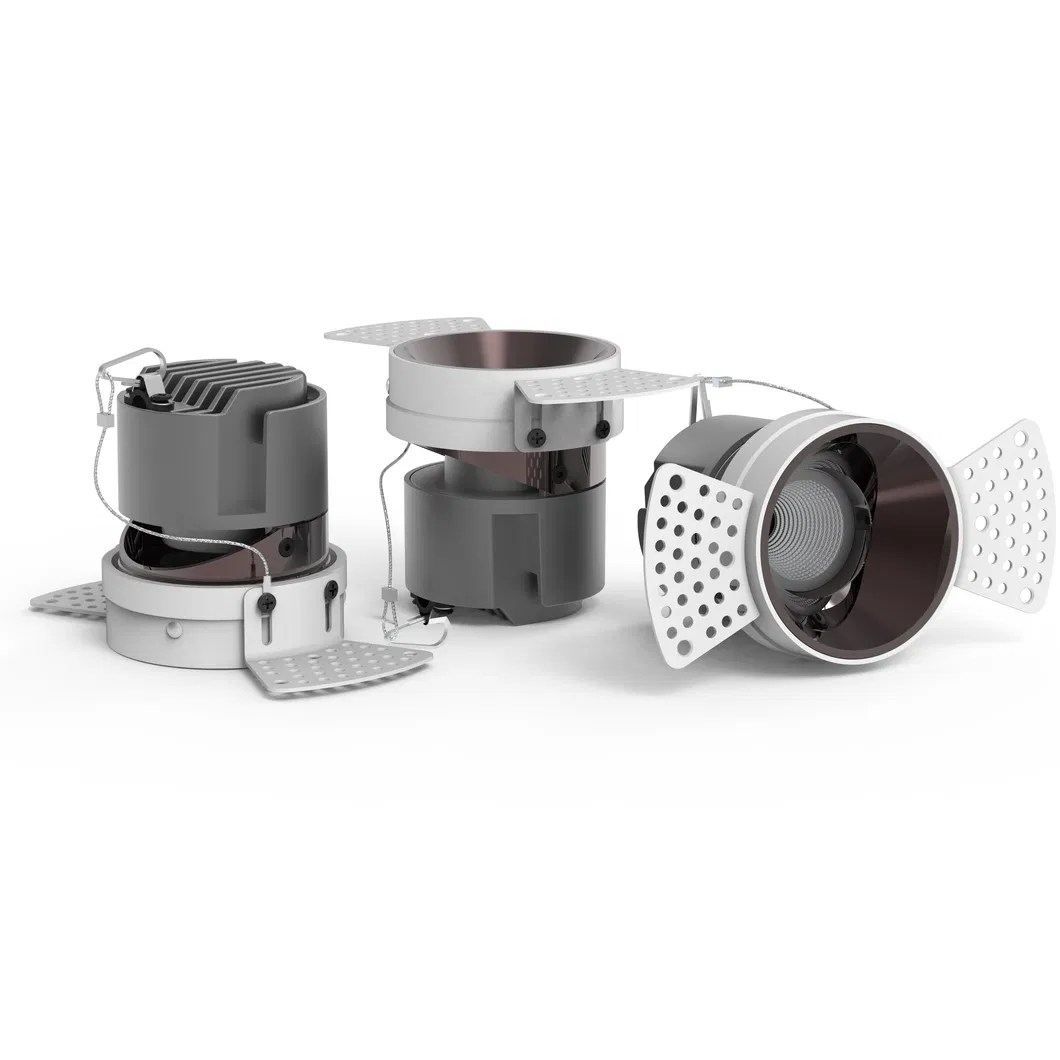

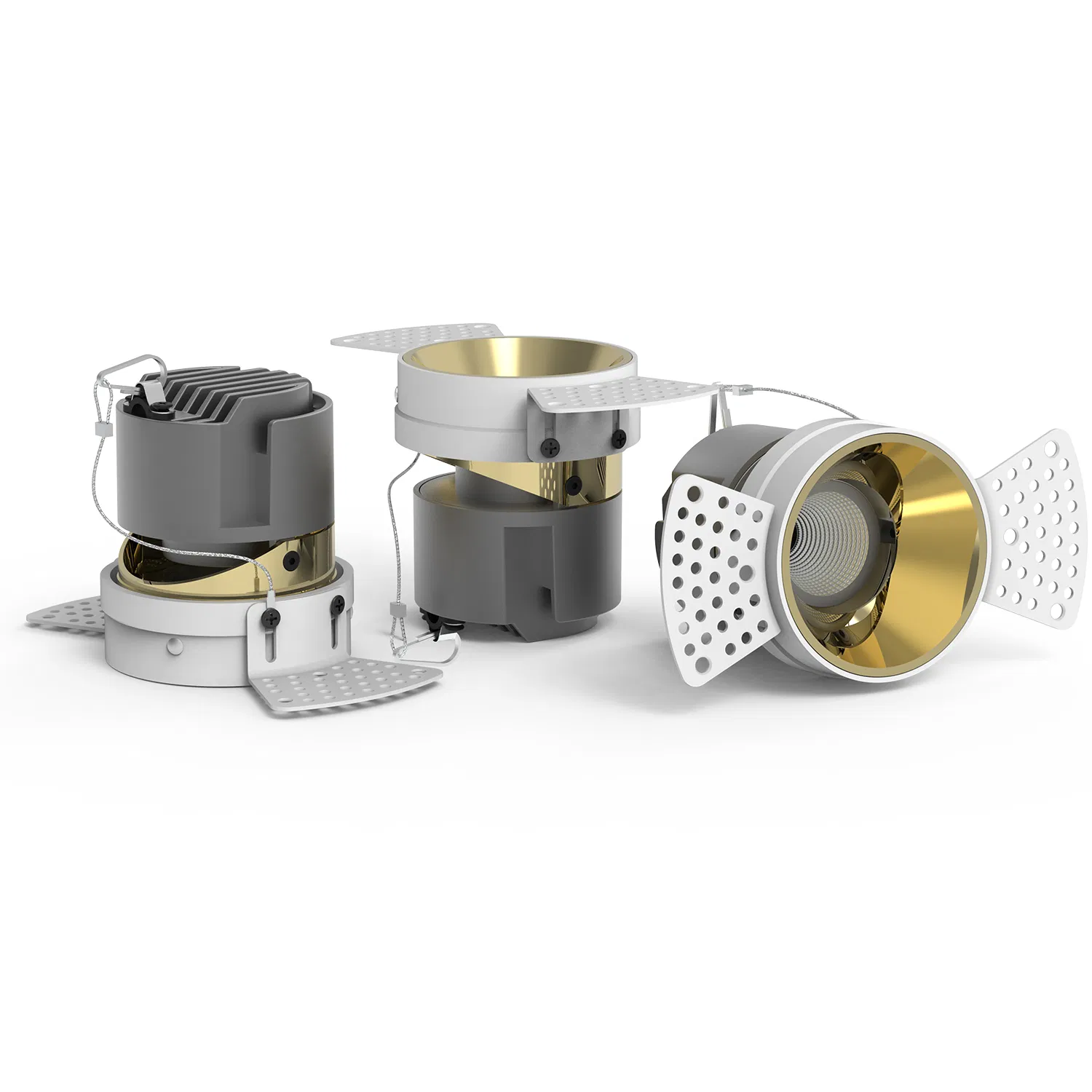

Reflector: white, mirror, silver, golden, gun/matt black, honeycomb

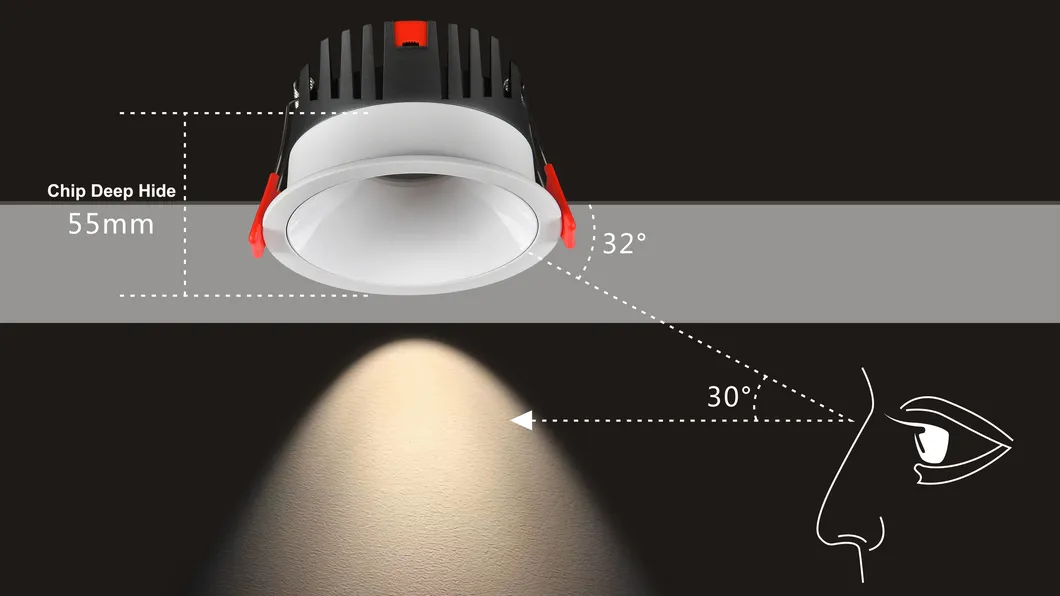

Optics lens no UV, deep-hidden anti-glare design UGR<16
Constant current driver, Triac, 0~10V or DALI dimmable option
Instant start, no flickering, no humming, no electric wave
Aluminum alloy housing, nice heat dissipation
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Less than 3% light decay in 10000hrs testing, SDCM≤3
Operating temperature: -25ºC~55ºC

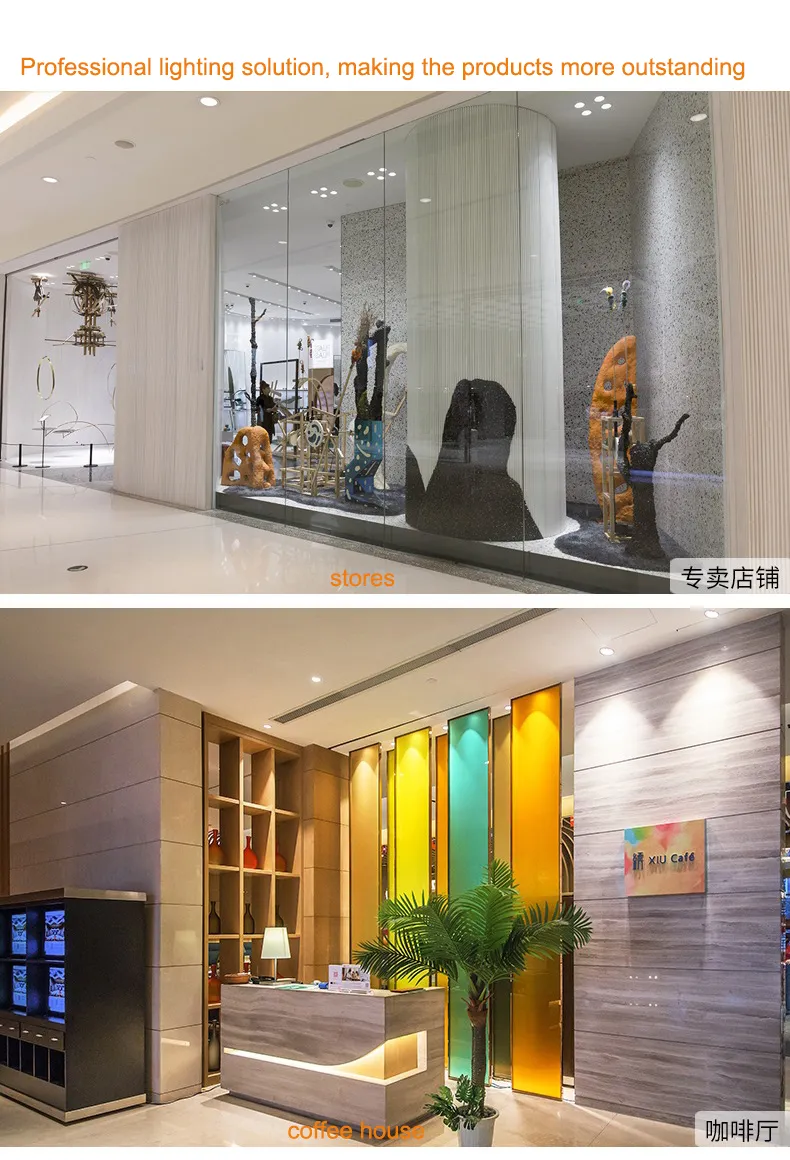

Suitable for hotel, villas, club, wine bar, residential and commercial area
Long Life span up to 50,000 hours

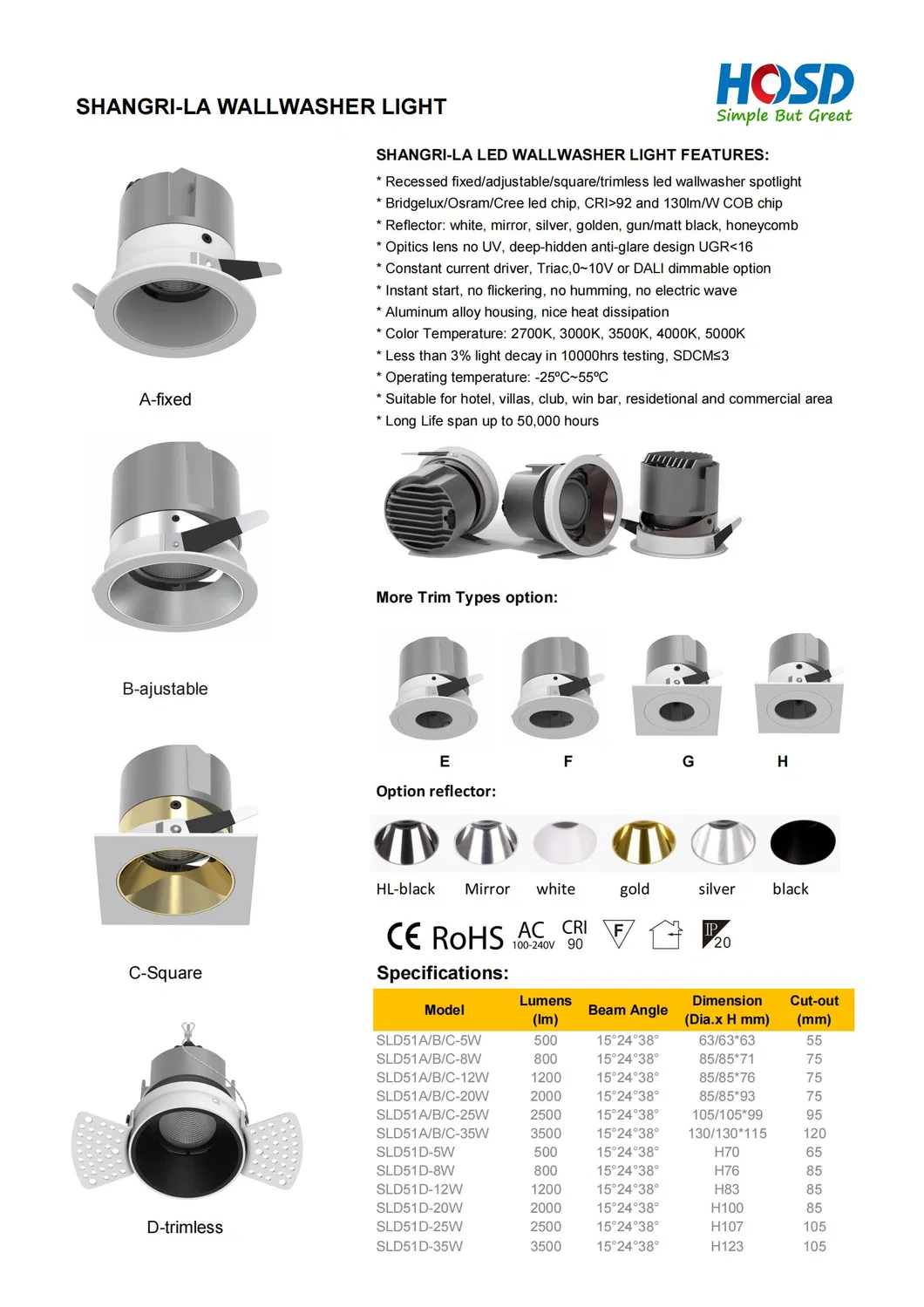

| Model | Lumens (lm) | Beam Angle | Dimension (Dia.x H mm) | Cut-out (mm) |
|---|---|---|---|---|
| SLD51A/B/C-5W | 500 | 15°24°38° | 63/63*63 | 55 |
| SLD51A/B/C-8W | 800 | 15°24°38° | 85/85*71 | 75 |
| SLD51A/B/C-12W | 1200 | 15°24°38° | 85/85*76 | 75 |
| SLD51A/B/C-20W | 2000 | 15°24°38° | 85/85*93 | 75 |
| SLD51A/B/C-25W | 2500 | 15°24°38° | 105/105*99 | 95 |
| SLD51A/B/C-35W | 3500 | 15°24°38° | 130/130*115 | 120 |

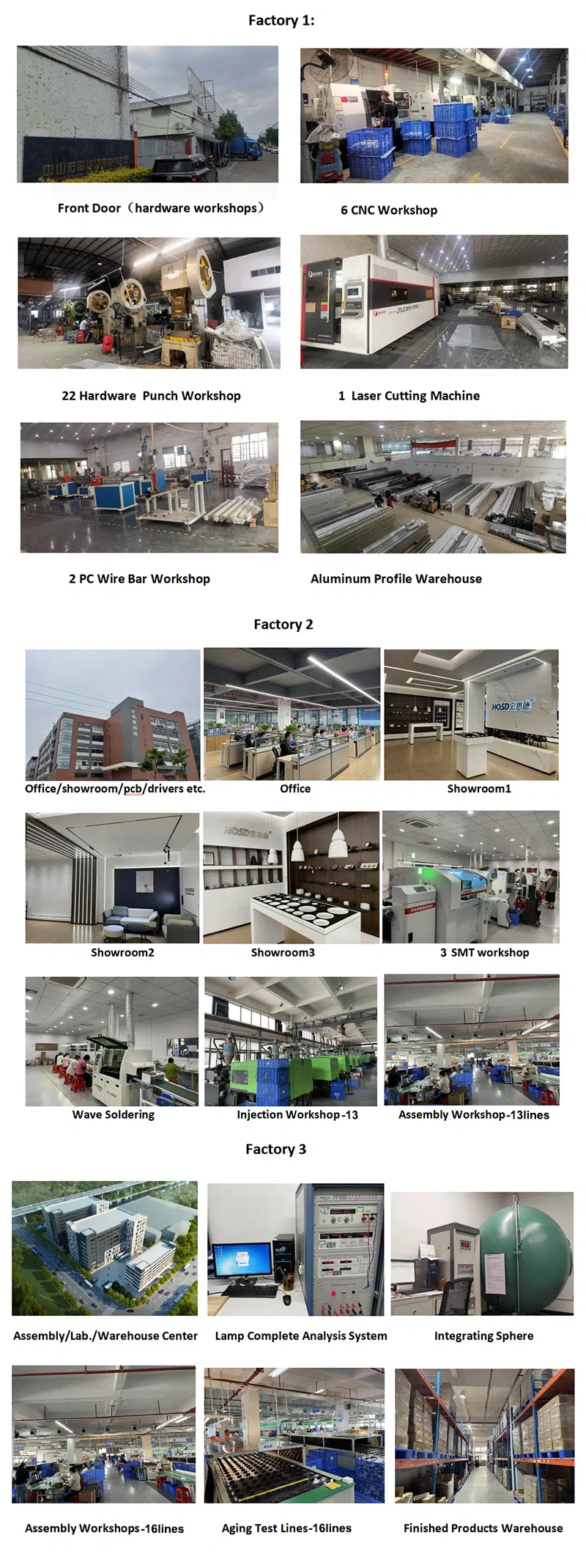

Yes, we are. We are a professional original manufacturer with three factories.
Yes, our structure engineers can make CAD and 3D drawings and develop new products based on the requirements of clients. We have mould workshops for punched, injection, and die-casting products, allowing for faster sample production.
Yes, we accept sample orders to test and check quality. Mixed models are acceptable.
It takes 3-5 days for samples, and 2-4 weeks for batch bulk orders.
Our factory passed GBT19001-2016 and ISO9001-2015 standards, and 100% of finished products pass aging tests before packing. We offer a 2-5 year guarantee on all of our products.
For parts that fail under guarantee, we will send free replacements with new orders for small quantities. For batch product failures, we will repair and resend them, or negotiate the best solution together.
